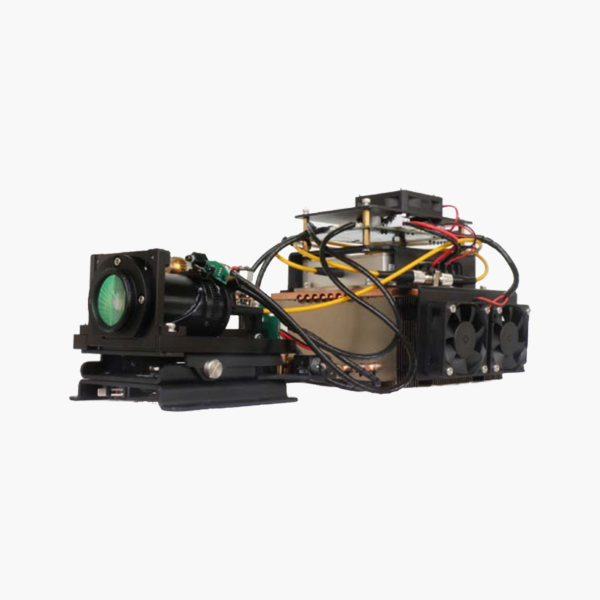

| Model | SG-IR808-5KL |
| Jarak efektif | ≥5000m |
| Mode | Fiber Coupling EEL (Edge Emitting Laser) |
| Dawane gelombang | 808±5nm |
| Daya Input | <130W |
| Daya Cahya Output | ≥45W |
| Sudut Sinar Laser | Adoh Sudut 0.3 °, Jarak efektif> 5000m, Beam Spot Diameter<φ16m |
| Cedhak Sudut 35°, Jarak Efektif>10m | |
| Wektu Initialization | 10s |
| Mode Kontrol | UART_TTL, RS-485, Manual |
| Antarmuka Komunikasi | RS-485, TTL232, Kontrol Manual |
| Protokol Komunikasi | Pelco-D (9600bps) |
| Mode Kerja | Terus |
| Service Life | > 20000H |
| Daya Input | DC24V±10%, 2.2A±0.3A |
| Suhu Operasi | -35°C~+55°C |
| Suhu panyimpenan | -40°C~+85°C |
| ukuran | 372mm x 153mm x 132mm |
| Bobot | 2,5 kg |
