| Model | SG-IR808-1K5 |
| Jarak efektif | ≥1500m |
| Mode | Fiber Coupling EEL (Edge Emitting Laser) |
| Dawane gelombang | 808±5nm |
| Daya Input | ≤28W |
| Daya Chip Laser | 12W |
| Daya Cahya Output | ≥8W |
| Sudut Sinar Laser | Sudut Tebih 0,8°, Jarak Efektif>1500m, Diameter Titik Beam ＜φ21m |
| Sudut Cedhak 72°, Jarak Efektif>40m, Diameter Titik Beam ＜φ58m | |
| Mode Kontrol | UART_TTL, RS-485, Manual |
| Antarmuka Komunikasi | RS-485, TTL232, Kontrol Manual |
| Protokol Komunikasi | Pelco-D (9600bps) |
| Mode Kerja | Terus |
| Service Life | > 30000H |
| Daya Input | DC12V±10%, 2.1A±0.2A |
| Suhu Operasi | -35°C~+55°C |
| Suhu panyimpenan | -50°C~+100°C |

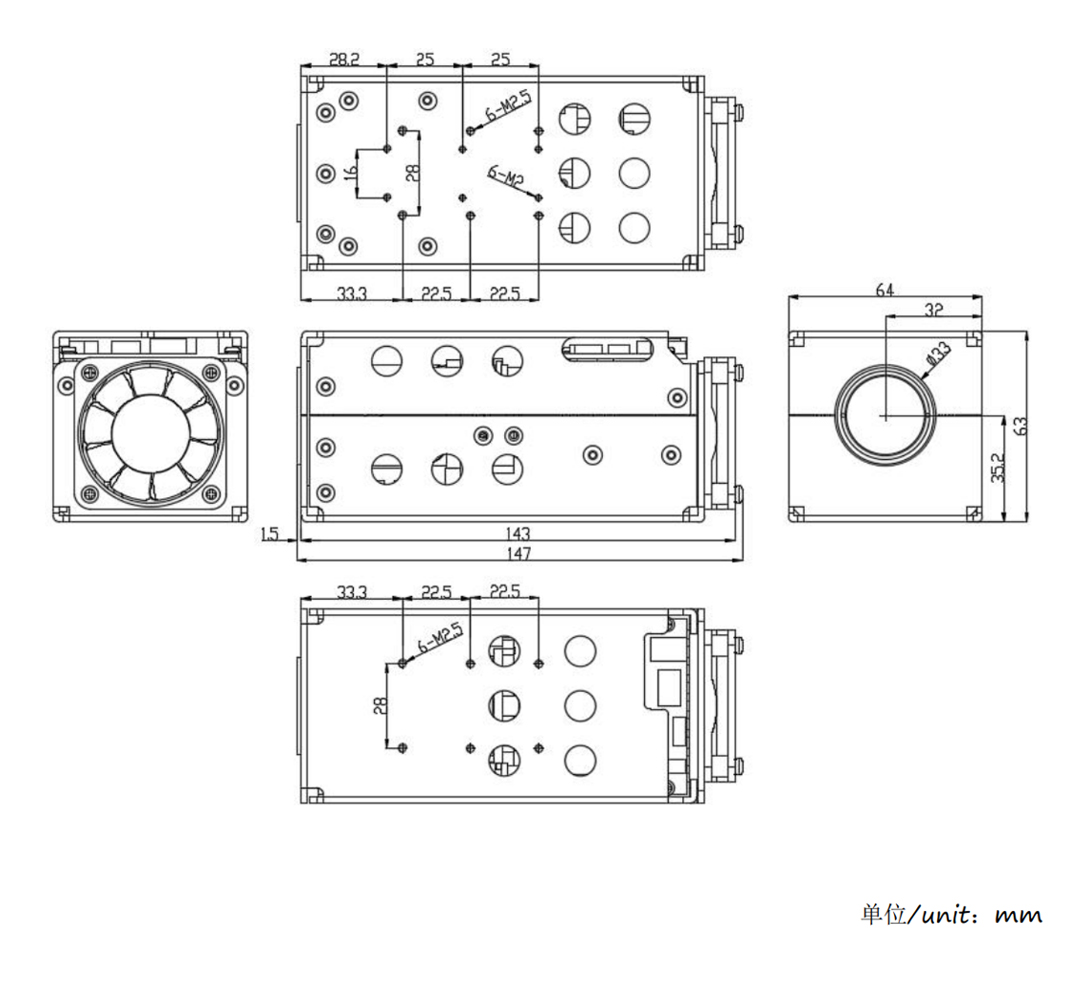

| ukuran | 147mm x 64mm x 63mm |
| Bobot | 550g |
