| Model | SG-IR808-1K |
| Jarak efektif | ≥1000m |
| Mode | EEL (Edge Emitting Laser) |
| Dawane gelombang | 808±10nm (940nm, 980nm kanggo opsional) |
| Daya Input | ≤32W |
| Daya Chip Laser | 10W |
| Daya Cahya Output | 7~8W |
| Sudut Sinar Laser | Sudut Tebih 0.8°, Jarak Efektif> 1000m, Diameter Titik Beam ＜φ28m |
| Cedhak Sudut 30°, Jarak Efektif>80m | |
| Mode Kontrol | UART_TTL, RS-485, Manual |
| Antarmuka Komunikasi | RS-485, TTL232, Kontrol Manual |
| Protokol Komunikasi | Pelco-D (Default 9600bps, 4800bps, 2400bps kanggo opsional) |
| Mode Kerja | Terus |
| Service Life | > 30000H |
| Daya Input | DC12V±10%, 2.1A±0.2A |
| Suhu Operasi | -35°C~+55°C |
| Suhu panyimpenan | -50°C~+100°C |

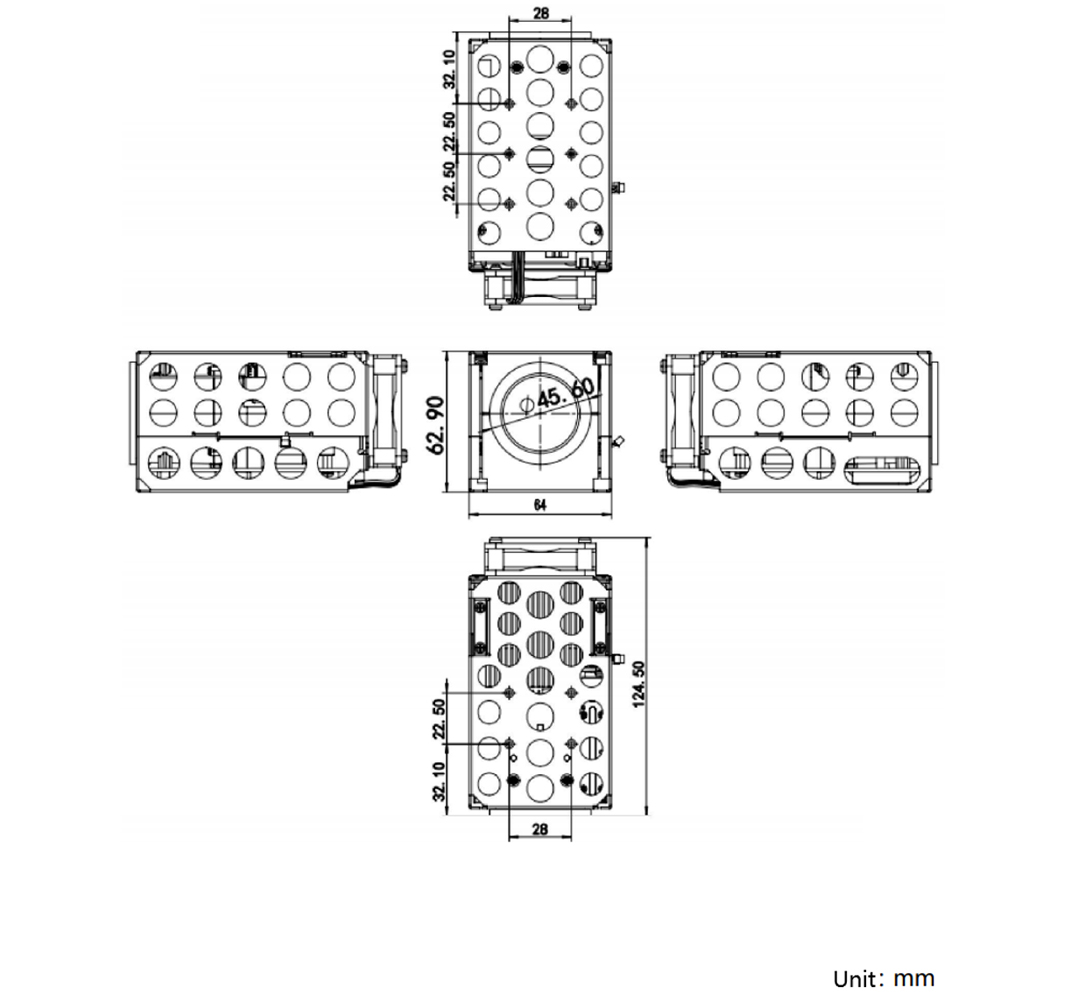

| ukuran | 125mm x 63mm x 64mm |
| Bobot | 400 g |
