| Model | SG-TCM06N1-M150 | SG-TCM06N1-M100 | SG-TCM06N1-M75 | |
| Sensor | Sensor gambar | Mikrobolometer VOx sing ora adhem | ||
| Resolusi | 640 x 512 | |||
| Ukuran piksel | 17μm | |||
| Spektral Range | 8~14μm | |||
| NETD | ≤50mK@25℃,F#1.0 | |||

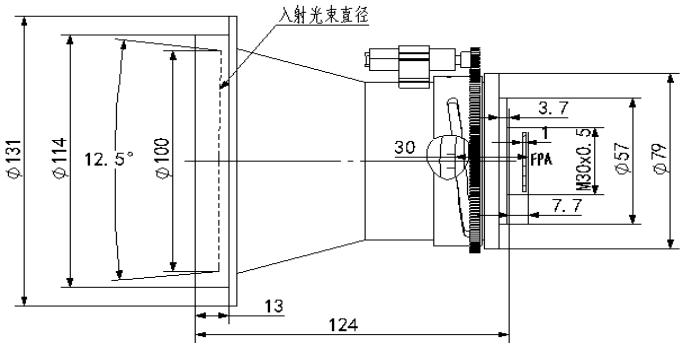

| Lensa | Dawane fokus | Lensa Motor 150mm Kab | Lensa Motor 100mm Kab | Lensa Motor 75mm Kab |
| Zoom Optik | N/A | N/A | N/A | |
| Zoom digital | N/A | N/A | N/A | |
| Nilai F | F1.0 | F1.0 | F1.0 | |
| FOV | 4,2°x3,3° | 6,2°x5,0° | 8,3°x6,6° | |
| Video | Kompresi | H.265/H.264/H.264H | ||
| Snapshot | JPEG | |||
| Warna pseudo | Dhukungan: Panas Putih, Panas Ireng, Abang Besi, Pelangi 1, Fulgurite, Pelangi 2, Fusion, Abang Kebiruan, Amber, Arktik, Tint | |||
| lepen | Aliran Utama: 25fps@(704×576), 25fps@(352×288)Sub Stream: 25fps@(704×576), 25fps@(352×288) | |||
| Jaringan | Protokol Jaringan | IPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, DHCP, PPPoE, 802.1X, Filter IP | ||
| Interoperabilitas | ONVIF Profile S, Open API, SDK | |||
| Maks.Sambungan | 20 | |||
| Intelligence | Acara Biasa | Deteksi Gerakan, Deteksi audio, konflik alamat IP, Akses Ilegal, Anomali panyimpenan | ||
| Fungsi IVS | Ndhukung fungsi cerdas:Tripwire, Deteksi Pagar Lintas, Intrusi, Deteksi Loitering. | |||
| Deteksi geni | Nyokong | |||
| Antarmuka | Ethernet | Port Ethernet 4PIN, 10M/100M adaptasi diri | ||
| Weker In/Out | 1/1 | |||
| RS485 | Nyokong | |||
| Resolusi | 50Hz: 25fps@(704×576) | |||
| Kapabilitas Storage | Kertu Micro SD, nganti 256G | |||
| Power Supply | DC 9~12V (Rekomendasi: 12V) | |||
| Kondisi Operasi | -20°C~+60°C/20% nganti 80%RH | |||
| Kahanan Panyimpenan | -40°C~+65°C/20% nganti 95%RH | |||
| Ukuran (L * W * H) | Kira-kira.250mm * 176mm * 176mm | Kira-kira.194mm * 131mm * 131mm | Kira-kira.182mm * 101mm * 101mm | |
| Bobot | Kira-kira.1,4 kg | Kira-kira.1,1 kg | Kira-kira.720g | |
