Jaringan 5x 5x lan modul kamera output miipi digital
|
Model |
Sg - ZCM8005NML |
||||
|
Sensor |
Sensor gambar |
1 / 2.8 "Sony Starvis Stervive Scan Cmos |
|||
|
Piksel sing efektif |
Kira-kira. 8.46 megapiksel |
||||
|
Lensa |
Dawane fokus |
3.5mm ~ 16.5mm, zoom optik 5x |
|||
|
Apenture |
F1.6 ~ f3.1 |
||||
|
Bidang tampilan |
H: 103.2 ° ~ 18.62 °, V: 54.5 ° ~ 10.54 ° ° ° ° ° ~ 21.31 ° |
||||
|
Jarak fokus jarak |
0.3m ~ 0,6m (sudhut ~ tele) |
||||
|
Kecepatan Zoom |
<2s (sudhut ~) |
||||
|
Dori jarak (Manungsa) |
Ndeteksi |
Mirsani |
Ngerteni |
Ngenali |
|
|
468m |
168m |
94m |
47m |
||
|
Video |
Kompresi |
H.265 / H.264B / H.264m / H.264h / Mjpeg |
|||
|
Kapabilitas streaming |
3 lepen |
||||
|
Resolusi |
Aliran utama: 25 / 30fps @ 3840 × 2160; 25 / 30fps @ 1920 × 1080; 25 / 30fps @ 1280 × 1024; 25 / 30fps @ 1280 × 960 Sub - Stream1: 25 / 30fps @ 704 × 576; 25 / 30fps @ 640 × 480 Sub - stream2: 25 / 30fps @ 1920 × 1080; 25 / 30fps @ 1280 × 720 |
||||
|
Tingkat bit video |
32Kbps ~ 16MBPS |
||||
|
Audio |
AAC / mp2l2 |
||||
|
Video Mipi |
50hz: 25fps @ 4mp (2688 × 1520) 60hz: 30fps @ 4MP (2688 × 1520) |
||||
|
Jaringan
|
Protokol jaringan |
IPv4, IPv6, http, http, tcp, tcp, rtsp, rtc, arp, ftp, icp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp |
|||
|
Api |
Onvif, http api, sdk, gb28181 |
||||
|
Browser web |
Yaiku, pinggiran, firefox, krom |
||||
|
Pangguna |
Nganti 20 pangguna, 2 level: Administrator, pangguna |
||||
|
Panyimpen |
SD Micro SD / SDHC / SDHC / SDXC (nganti 1TB) Storage Edge, FTP, NAS |
||||
|
Multicast |
Dhukungan |
||||
|
Nganyarke firmware |
Mung bisa nganyarke perangkat kukuh liwat port jaringan. |
||||
|
Acara Umum |
Gerak, Tamper, Kertu SD, Jaringan |
||||
|
IVs |
Tripwire, deteksi pager, intrusion, obyek sing ditinggalake, cepet - obah, deteksi parkir, deteksi pemilihan. |
||||
|
Bedane target |
Manungsa / kendharaan |
||||
|
S / N Rasio |
≥55db |
||||
|
Pencerakan Paling Dhuwur |
Werna: 0,05lux / f1.85; B / W: 0.0005lux / F1.85 |
||||
|
Pengurangan swara |
2D / 3D |
||||
|
Mode cahya |
Otomatis, prioritas rana, entuk prioritas, manual |
||||
|
Ganti rugi cahya |
Dhukungan |
||||
|
Kacepetan rana |
1/ 1 ~ 1 / 30000s |
||||
|
Blc |
Dhukungan |
||||
|
Hlc |
Dhukungan |
||||
|
WDR |
Dhukungan |
||||
|
Imbangan putih |
Otomatis, manual, njero ruangan, ruangan, ATW, Sodium Lampu, lampu lampu, alam, siji push |
||||
|
Awan / wengi |
ICR (Auto / Manual) |
||||
|
Mode Fokus |
Otomatis, Manual, Semi Otomatis, Otomatis Cepet, Otomatis Cepet, Siji Push AF |
||||
|
Elektronik Defog |
Dhukungan |
||||
|
Pengurangan Haze Panas |
Dhukungan |
||||
|
Flip |
Dhukungan |
||||
|
EIS |
Dhukungan |
||||
|
Zoom digital |
16x |
||||
|
Kontrol eksternal |
Ttl |
||||
|
Antarmuka |
4pin eternet port, 6pin Power & UART port, port audio 5pin. 30pin Mipi |
||||
|
Protokol komunikasi |
Sony Visca, Pelco D / P |
||||
|
Kahanan operasi |
Kèndêl ingsun - 30 ° C ~ + 70 ° C / 20% dadi 80% RH |
||||
|
Kahanan panyimpenan |
Kèndêl ingsun - 40 ° C ~ + 70 ° C / 20% dadi 95% RH |
||||
|
Pasokan listrik |
DC 12V |
||||
|
Konsumsi daya |
Daya statis: 4.0w, Kekuwatan Olahraga: 5.0w |
||||
|

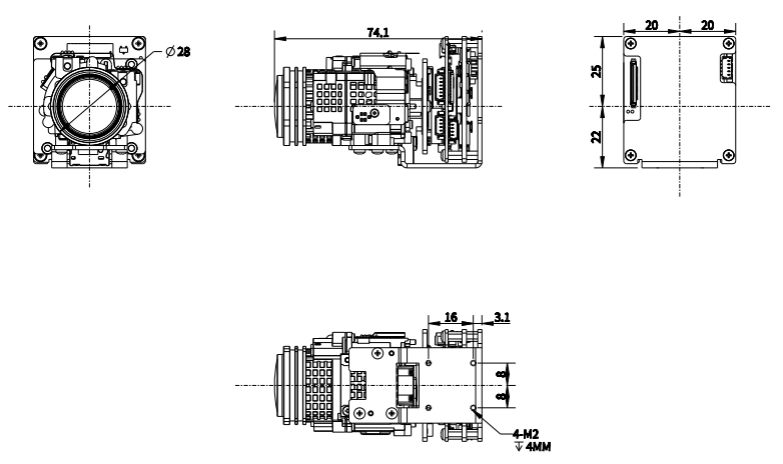

Ukuran (l * w * h) |
40mm * 47mm * 74.1mm |
||||
|
Bobot |
90g |
||||
