8MP / 4K Zain Modul Camera Starlight Ndewa kamera jaringan
Model | Sg - zcm8010nkl | ||||
Sensor | Sensor gambar | 1/2.8"Scan Progresif Sony Starvis CMos | |||
| Piksel sing efektif | Kira-kira. 8.46Megapiksel | ||||
Lensa | Dawane fokus | 4.8mm~48mm, 10x Zoom optik | |||
| Apenture | F1.7 ~ f3.2 | ||||
| Bidang tampilan | H:60.2°~6,6 °, V:36.1°~3.7 °,D:67.3°~7.6 ° | ||||
| Jarak fokus jarak | 1m~2m (Sudhut~Tele) | ||||
| Zkacepetan oom | Kira-kira. 3s (optik sudhut ~ tele) | ||||
| Dori jarak(Manungsa) | Ndeteksi | Mirsani | Ngerteni | Ngenali | |
| 1,326m | 526m | 265m | 133m | ||
Video | Kompresi | H.265 / H.264 / H.264H / Mjpeg | |||
| Kapabilitas streaming | 3 Aliran | ||||
| Resolusi | 50hz: 25fps@8Mp(3840 × 2160) 60Hz: 30fps@8Mp(3840 × 2160) | ||||
| Tingkat bit video | 32Kbps ~ 16MBPS | ||||
| AUdio | AAC / mp2l2 | ||||
Jaringan | Panyimpen | Kertu TF (1TB), FTP, NAS | |||
| JaringanProtocol | Onvif, http, https, ipv4, ipv6, rtsp, ddn, rtp, tcp, udp | ||||
| MUlticast | SUpport | ||||
| Acara Umum | Motion, Kartu SD, Jaringan | ||||
| IVs | Tripwire, deteksi pager, intrusion, obyek sing ditinggalake, cepet - obah, deteksi parkir, deteksi pemilihan. | ||||
| S / N Rasio | ≥55db (AGC OFF,Bobot ing) | ||||
| Pencerakan Paling Dhuwur | Werna:0.01lux / f1.7;B / w:0.001lux / F1.7 | ||||
| NOiseREdisi | 2D/ 3D | ||||
| Mode cahya | Otomatis, Prioritas apent, prioritas rana, dadi prioritas,Manual | ||||
| Ganti rugi cahya | Dhukungan | ||||
| Kacepetan rana | 1/3 ~ 1/30000s | ||||
| Blc | Dhukungan | ||||
| Hlc | Dhukungan | ||||
| WDR | Dhukungan | ||||
| Imbangan putih | Otomatis, Manual, njero ruangan, ruangan,ALampu, Lampu SODIUM,Street Lamp,Alam,Siji Push | ||||
| Awan / wengi | Listrik, ICR (Auto / Manual) | ||||
| Mode Fokus | Auto, Manual, SEMI Otomatis, Otomatis Cepet, Otomatis Sepak Cepet, Siji PushAF | ||||
| Elektronik Defog | Dhukungan | ||||
| Flip | Dhukungan | ||||
| EIS | Dhukungan | ||||
| Zoom digital | 16x | ||||
| Kontrol eksternal | TTL | ||||
| Antarmuka | 4pin eternet port, 6pin Daya& Port UART, 3port audio pin. | ||||
| KomunikasiProtokol | Sony Visca, Pleco D / p | ||||
| Kahanan operasi | -30 ° C~+ 60 ° C / 20% nganti 80%RH | ||||
| Kahanan panyimpenan | -40 ° C~+ 70 ° C / 20%kanggo 95%RH | ||||
| Pasokan listrik | DC 12V | ||||
| Konsumsi daya | Daya statis:4.5w,Daya olahraga:5.5w | ||||

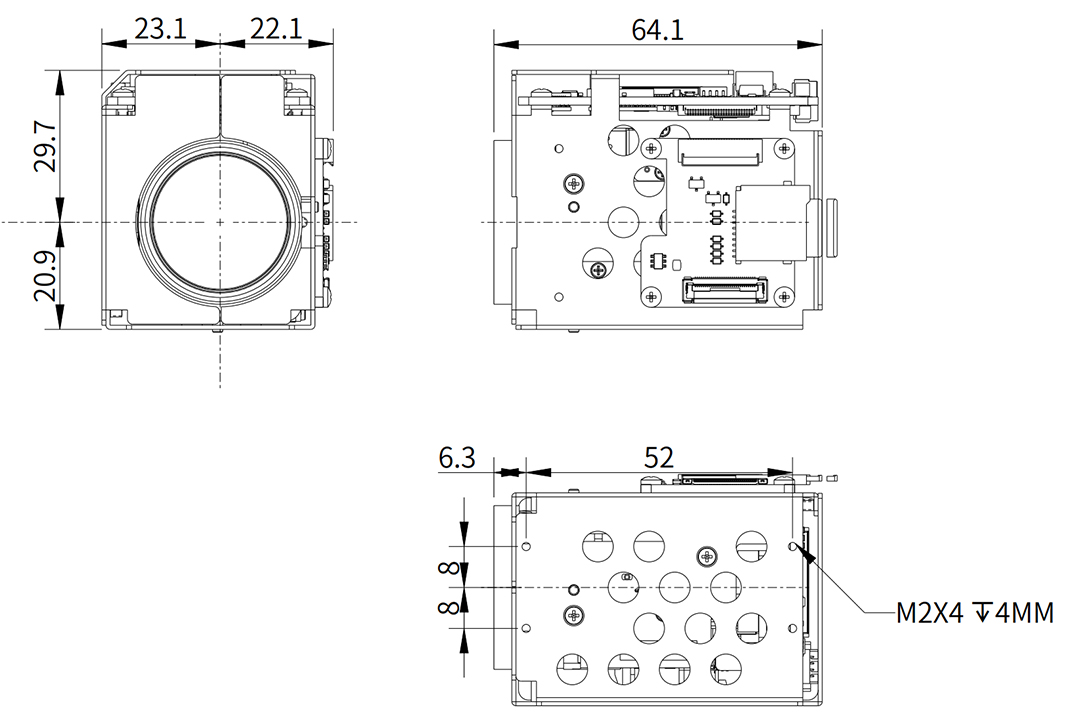

| Dimensi (l *W*H) | 64.1mm* 41.6mm* 50.6mm | ||||
| Bobot | 146g | ||||
