Modul kamera 4K 3MP 3.5X NDAA
Model | Sg -ZCM8003NKL | ||||
Sensor | Sensor gambar | 1/2.3"Scan Progresif Sony Starvis CMos | |||
| Piksel sing efektif | Kira-kira.12.93Megapiksel | ||||
Lensa | Dawane fokus | 3.85mm~13.4mm, 3.5x zoom optik | |||
| Apenture | F2.4 ~ F5.03 | ||||
| Bidang tampilan | H: 82°~ 25° | ||||
| Jarak fokus jarak | 1m~2m (Sudhut~Tele) | ||||
| Zkacepetan oom | Kira-kira.2.5 (Optik wide ~ tele) | ||||
| Dori jarak(Manungsa) | Ndeteksi | Mirsani | Ngerteni | Ngenali | |
| 346m | 137m | 69m | 34m | ||
Video | Kompresi | H.265 / H.264 / H.264H / Mjpeg | |||
| Kapabilitas streaming | 3 Aliran | ||||
| Resolusi | 50hz: 10fps@ 12mp (4000 × 3000),25fps @ 8MP (3840 × 2160)60hz: 10fps@ 12mp (4000 × 3000),30fps @ 8MP (3840 × 2160) | ||||
| Tingkat bit video | 32Kbps ~ 16MBPS | ||||
| AUdio | AAC / mp2l2 | ||||
Jaringan | Panyimpen | Kertu TF (256 GB), FTP, NAS | |||
| JaringanProtocol | Onvif, http, https, ipv4, ipv6, rtsp, ddn, rtp, tcp, udp | ||||
| MUlticast | SUpport | ||||
| Acara Umum | Motion, Kartu SD, Jaringan | ||||
| IVs | Tripwire, deteksi pager, intrusion, obyek sing ditinggalake, cepet - obah, deteksi parkir, deteksi pemilihan. | ||||
| S / N Rasio | ≥55db (AGC OFF,Bobot ing) | ||||
| Pencerakan Paling Dhuwur | Werna:0.5Lux / F2.4; | ||||
| NOiseREdisi | 2D/ 3D | ||||
| Mode cahya | Otomatis, Prioritas apent, prioritas rana, dadi prioritas,Manual | ||||
| Ganti rugi cahya | Dhukungan | ||||
| Kacepetan rana | 1/3 ~ 1/30000s | ||||
| Blc | Dhukungan | ||||
| Hlc | Dhukungan | ||||
| WDR | Dhukungan | ||||
| Imbangan putih | Otomatis, Manual, njero ruangan, ruangan,ALampu, Lampu SODIUM,Street Lamp,Alam,Siji Push | ||||
| Awan / wengi | Listrik, ICR (Auto / Manual) | ||||
| Mode Fokus | Auto, Manual, SEMI Otomatis, Otomatis Cepet, Otomatis Sepak Cepet, Siji PushAF | ||||
| Elektronik Defog | Dhukungan | ||||
| Flip | Dhukungan | ||||
| EIS | Dhukungan | ||||
| Zoom digital | 16x | ||||
| Kontrol eksternal | TTL | ||||
| Antarmuka | 4pin eternet port, 6pin Daya& Port UART, port audio 5pin. | ||||
| KomunikasiProtokol | Sony Visca, Pleco D / p | ||||
| Kahanan operasi | (-10 ° C~+ 60 ° C / 20% nganti 80%RH) | ||||
| Kahanan panyimpenan | (-20 ° C~+ 70 ° C / 20%kanggo 95%RH) | ||||
| Pasokan listrik | DC 12V | ||||
| Konsumsi daya | Daya statis: 3.5w,Daya olahraga: 4.5w | ||||

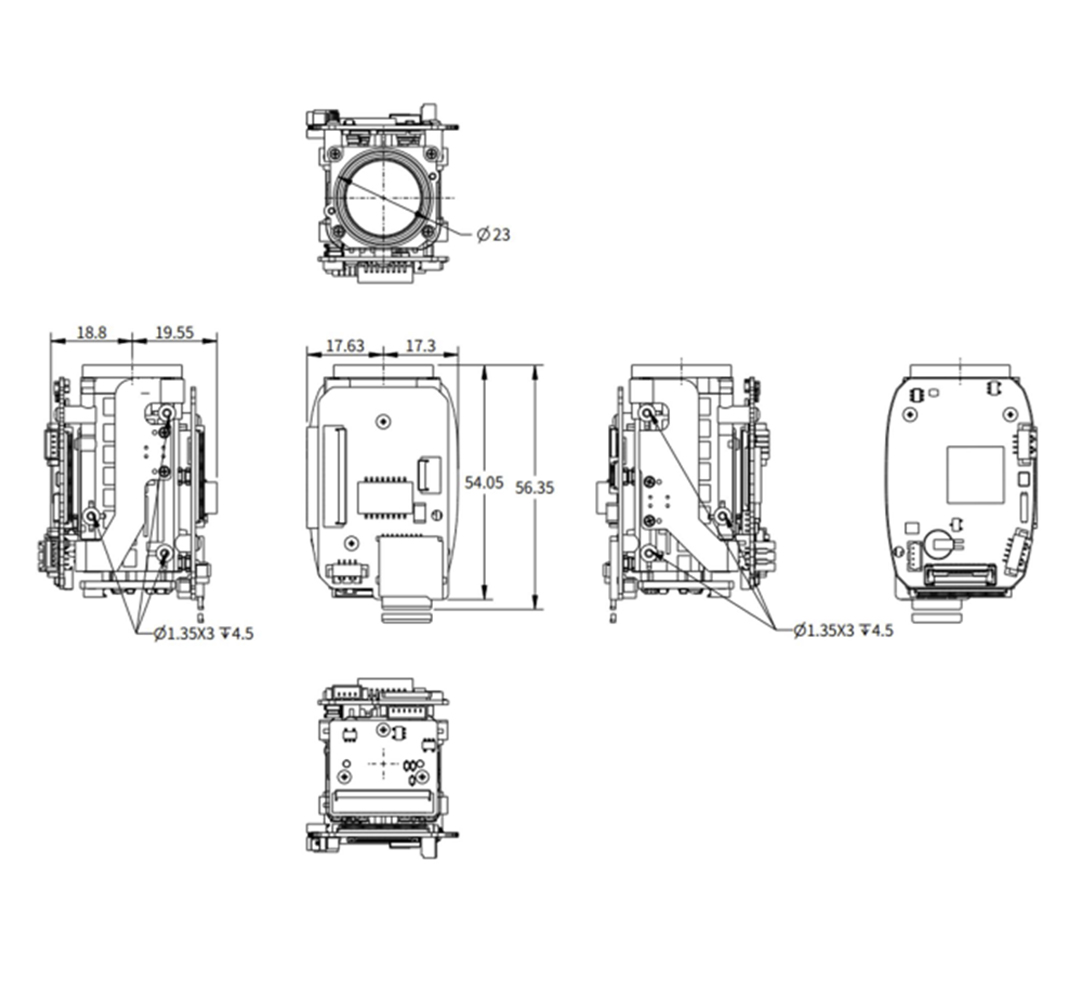

| Dimensi (l *W*H) | 56mm*35mm* 39mm | ||||
| Bobot | 55g | ||||
