2MP 90x AI ISP adhedhasar Long Sonya Sony Starvis 2 Jaringan lan Modul kamera MIPI Dual
|
Model |
Sg - zcm2090nMI-O |
||||
|
Sensor |
Sensor gambar |
1 / 1,8 "Sony Starvis 2 Scan Cmos Progresif |
|||
|
Piksel sing efektif |
Kira-kira. 8.40 megapiksel |
||||
|
Lensa |
Dawane fokus |
6mm ~ 540mm, zoom optik 90x |
|||
|
Apenture |
F1.4 ~ F4.87 |
||||
|
Bidang tampilan |
H: 65.24 ° ~ 0,81 °, V: 39.60 ° ° iki, D: 726 ° ~ 0.94.58 ° ~ 0,94 ° |
||||
|
Jarak fokus jarak |
1m ~ 10m (sudhut ~) |
||||
|
Kecepatan Zoom |
<10s (sudhut ~) |
||||
|
Dori jarak (Manungsa) |
Ndeteksi |
Mirsani |
Ngerteni |
Ngenali |
|
|
10,800m |
4,286m |
2,160m |
1,080m |
||
|
Video |
Kompresi |
H.265 / H.264B / H.264m / H.264h / Mjpeg |
|||
|
Kapabilitas streaming |
3 lepen |
||||
|
Resolusi |
Aliran utama: 50 / 60fps @ 1920 × 1080; 50 / 60fps @ 1280 × 720 Sub - Stream1: 50 / 60fps @ 704 × 576; 50 / 60fps @ 640 × 480 Sub - stream2: 25 / 30fps @ 1920 × 1080; 25 / 30fps @ 1280 × 720 |
||||
|
Tingkat bit video |
32Kbps ~ 16MBPS |
||||
|
Audio |
AAC / mp2l2 |
||||
|
Video Mipi |
50hz: 50fps @ 2mp (1920 × 1080) 60hz: 60fps @ 2MP (1920 × 1080) |
||||
|
Jaringan
|
Protokol jaringan |
IPv4, IPv6, http, http, tcp, tcp, rtsp, rtc, arp, ftp, icp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp |
|||
|
Api |
Onvif, http api, sdk, gb28181 |
||||
|
Browser web |
Yaiku, pinggiran, firefox, krom |
||||
|
Pangguna |
Nganti 20 pangguna, 2 level: Administrator, pangguna |
||||
|
Panyimpen |
SD Micro SD / SDHC / SDHC / SDXC (nganti 1TB) Storage Edge, FTP, NAS |
||||
|
Multicast |
Dhukungan |
||||
|
Nganyarke firmware |
Mung bisa nganyarke perangkat kukuh liwat port jaringan. |
||||
|
Acara Umum |
Gerak, Tamper, Kertu SD, Jaringan |
||||
|
IVs |
Tripwire, deteksi pager, intrusion, obyek sing ditinggalake, cepet - obah, deteksi parkir, deteksi pemilihan. |
||||
|
Bedane target |
Manungsa / kendharaan |
||||
|
S / N Rasio |
≥55db |
||||
|
Pencerakan Paling Dhuwur |
Werna: 0,001lux / f1.4; B / W: 0.0001LUX / F1.4 |
||||
|
Pengurangan swara |
Suda Noise 2D / 3D / AI |
||||
|
Mode cahya |
Auto, Bukten Bukten, prioritas rana, entuk prioritas, manual |
||||
|
Ganti rugi cahya |
Dhukungan |
||||
|
Kacepetan rana |
1/ 1 ~ 1 / 30000s |
||||
|
Blc |
Dhukungan |
||||
|
Hlc |
Dhukungan |
||||
|
WDR |
Dhukungan |
||||
|
Imbangan putih |
Otomatis, manual, njero ruangan, ruangan, ATW, Sodium Lampu, lampu lampu, alam, siji push |
||||
|
Awan / wengi |
ICR (Auto / Manual) |
||||
|
Mode Fokus |
Otomatis, Manual, Semi Otomatis, Otomatis Cepet, Otomatis Cepet, Siji Push AF |
||||
|
Elektronik Defog |
Dhukungan |
||||
|
Optik Defog |
Dhukungan, 750nm ~ 1100NM saluran optik |
||||
|
Pengurangan Haze Panas |
Dhukungan |
||||
|
Flip |
Dhukungan |
||||
|
EIS |
Dhukungan |
||||
|
Zoom digital |
16x |
||||
|
Kontrol eksternal |
Ttl |
||||
|
Antarmuka |
4pin eternet port, 6pin Power & UART port, port audio 5pin. 30pin Mipi |
||||
|
Protokol komunikasi |
Sony Visca, Pelco D / P |
||||
|
Kahanan operasi |
Kèndêl ingsun - 40 ° C ~ + 70 ° C / 20% dadi 80% RH |
||||
|
Kahanan panyimpenan |
Kèndêl ingsun - 40 ° C ~ + 70 ° C / 20% dadi 95% RH |
||||
|
Pasokan listrik |
DC 12V |
||||
|
Konsumsi daya |
Daya statis: 7.5W, Kekuwatan Olahraga: 10,8w |
||||
|

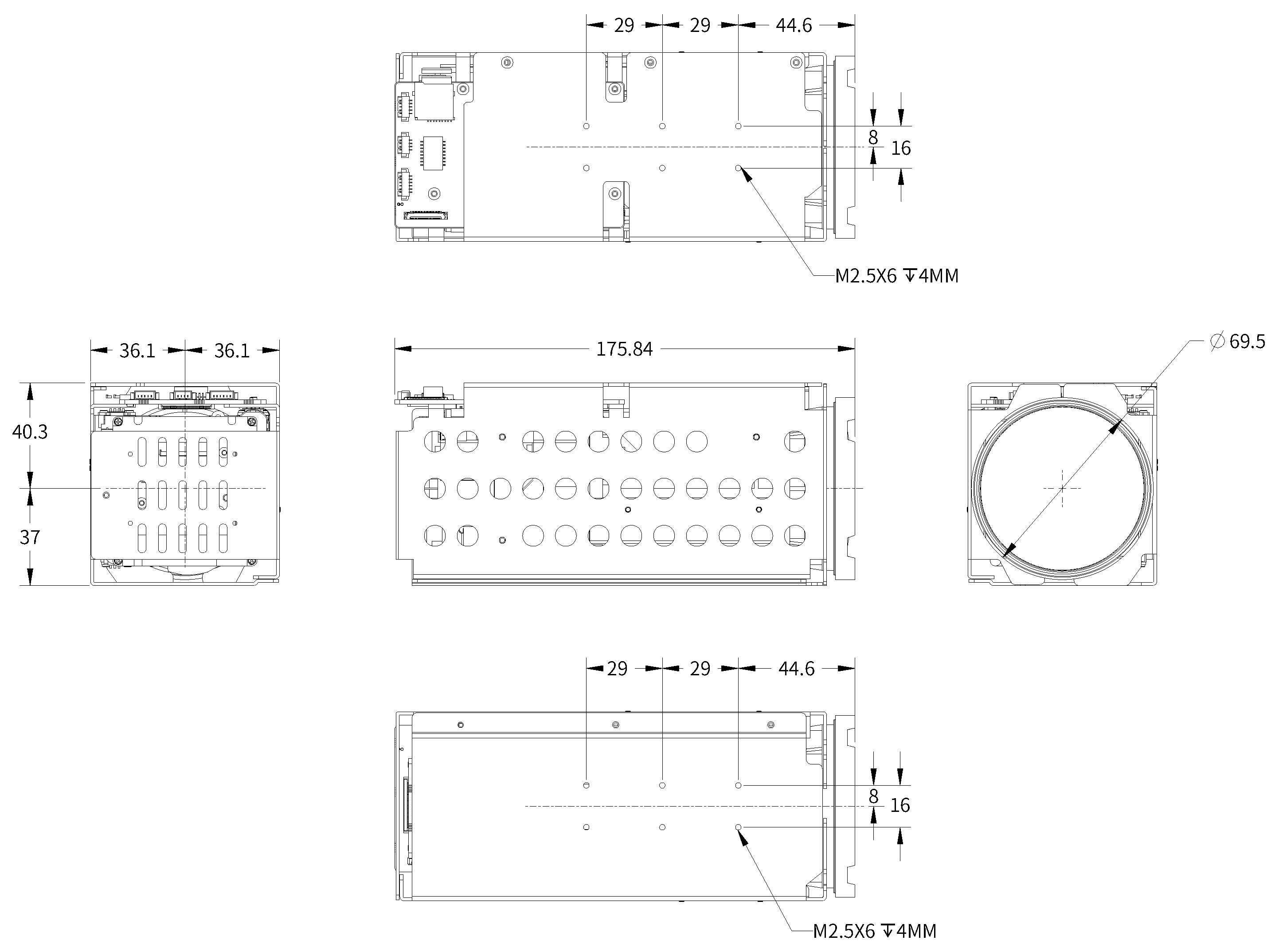

Ukuran (l * w * h) |
176mm * 72mm * 77mm |
||||
|
Bobot |
970.5g |
||||
