Modul Kamera Lampu Kamera 2MP 30x Dada
Model | Sg - zcm2030nkl | ||||
Sensor | Sensor gambar | 1 / 2.8 "Sony Starvis Stervive Scan Cmos | |||
| Piksel sing efektif | Kira-kira. 2.13 megapiksel | ||||
Lensa | Dawane fokus | 4.7mm ~ 141mm, 30x zoom optik | |||
| Apenture | F1.5 ~ ~ F4.0 | ||||
| Bidang tampilan | H: 61.2 ° ° ° ° °, V: 36.8 ° ° ° ° ° ° °, D: 68.4 ° ~ ° 6,5 ° | ||||
| Jarak fokus jarak | 0.1m ~ 1.5m (sudhut ~ tele) | ||||
| Kecepatan Zoom | Kira-kira.3.5s (sudhut optik ~ tele) | ||||
| Dori jarak (manungsa) | Ndeteksi | Mirsani | Ngerteni | Ngenali | |
| 1,999m | 793m | 399m | 199m | ||
Video | Kompresi | H.265 / H.264 / H.264H / Mjpeg | |||
| Kapabilitas streaming | 3 lepen | ||||
| Resolusi | 50hz: 25 / 50fps @ 2mp (1920 × 1080), 25fps @ 60Hz: 30hz: 30Hz: 30 / 60fps @ 30mp (1920 × 1080), 30f (1280 × 1080), 30mp (1280 × 1080) | ||||
| Tingkat bit video | 32Kbps ~ 16MBPS | ||||
| Audio | AAC / mp2l2 | ||||
Jaringan | Panyimpen | Kertu TF (256 GB), FTP, NAS | |||
| Protokol jaringan | Onvif, http, https, ipv4, ipv6, rtsp, ddn, rtp, tcp, udp | ||||
| Multicast | Dhukungan | ||||
| Acara Umum | Gerak, Tamper, Kertu SD, Jaringan | ||||
| IVs | Tripwire, deteksi pager, intrusion, obyek sing ditinggalake, cepet - obah, deteksi parkir, deteksi pemilihan. | ||||
| S / N Rasio | ≥55db (agc mati, bobot ing) | ||||
| Pencerakan Paling Dhuwur | Werna: 0,005lux / F1.5; B / W: 0.0005lux / F1.5 | ||||
| Pengurangan swara | 2D / 3D | ||||
| Mode cahya | Auto, Bukten Bukten, prioritas rana, entuk prioritas, manual | ||||
| Ganti rugi cahya | Dhukungan | ||||
| Kacepetan rana | 1/ 1 ~ 1 / 30000s | ||||
| Blc | Dhukungan | ||||
| Hlc | Dhukungan | ||||
| WDR | Dhukungan | ||||
| Imbangan putih | Otomatis, manual, njero ruangan, ruangan, ATW, Sodium Lampu, lampu lampu, alam, siji push | ||||
| Awan / wengi | Listrik, icr (otomatis / manual) | ||||
| Mode Fokus | Otomatis, Manual, Semi Otomatis, Otomatis Cepet, Otomatis Cepet, Siji Push AF | ||||
| Elektronik Defog | Dhukungan | ||||
| Flip | Dhukungan | ||||
| EIS | Dhukungan | ||||
| Zoom digital | 16x | ||||
| Kontrol eksternal | Ttl | ||||
| Antarmuka | 4pin eternet port, 6pin Power & UART port, port audio 5pin. | ||||
| Protokol komunikasi | Sony Visca, Pelco D / P | ||||
| Kahanan operasi | (- 30 ° C ~ + 60 ° C / 20% dadi 80% RH) | ||||
| Kahanan panyimpenan | (- 40 ° C ~ + 70 ° C / 20% dadi 95% RH) | ||||
| Pasokan listrik | DC 12V | ||||
| Konsumsi daya | Daya statis: kakuwatan 4w, olahraga: 5w | ||||

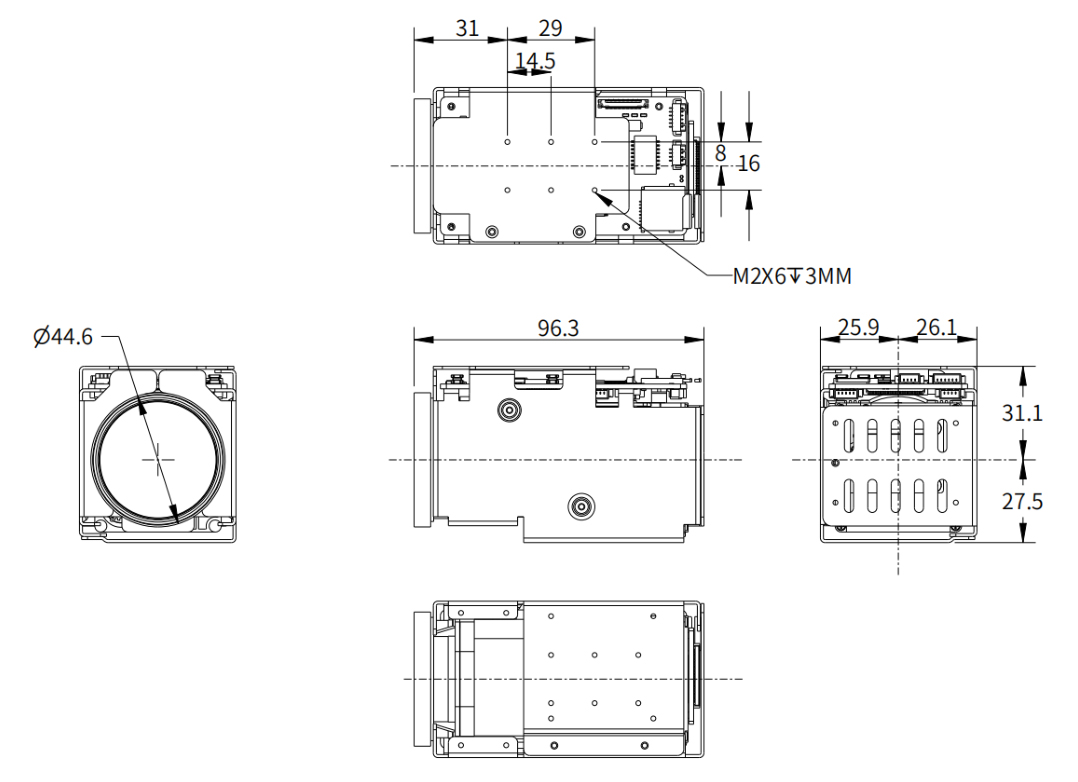

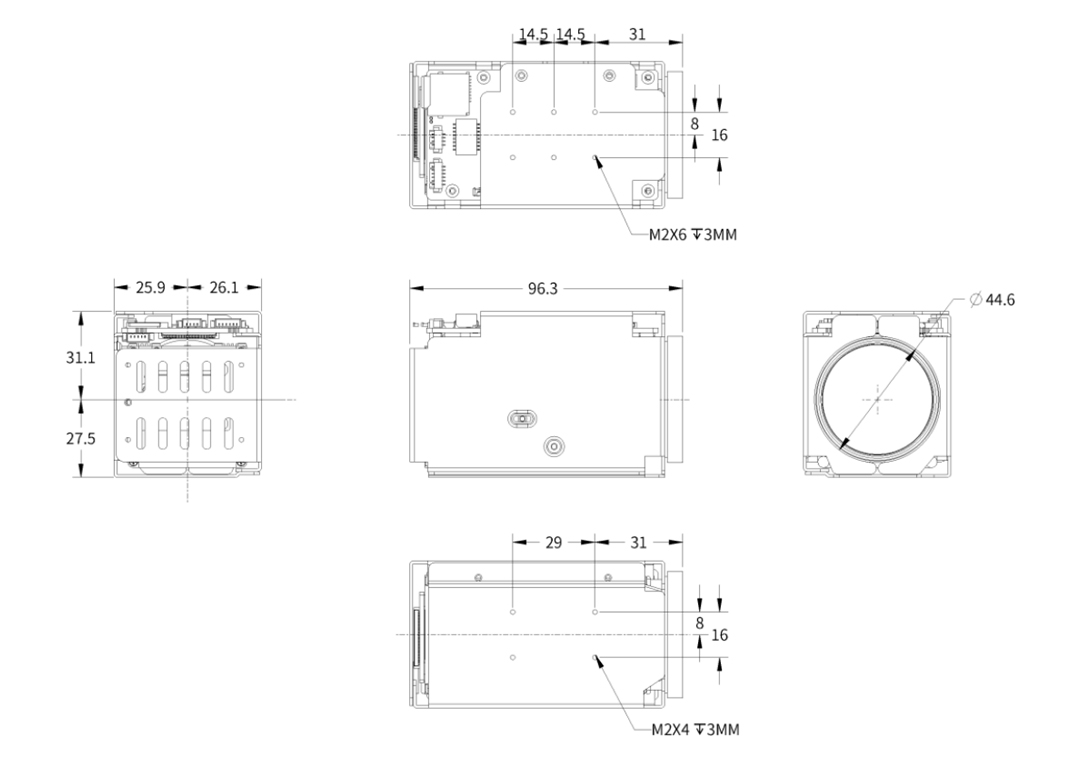

| Ukuran (l * w * h) | 96.3mm * 52mm * 58.6mm | ||||
| Bobot | 300g | ||||
