2MP 30X Zoom HDTTI, HDCVI, AHD, CVBS 4 ing 1 output kamera Modul
|
Model |
Sg - zcm2030a |
|
|
Sensor |
Sensor gambar |
1 / 2.8 "Sony Imx307 CMOS |
|
Piksel sing efektif |
Kira-kira. 2.13 megapiksel |
|
|
Lensa |
Dawane fokus |
4.7mm ~ 141mm, 30x zoom optik |
|
Apenture |
F1.5 ~ ~ F4.0 |
|
|
Bidang tampilan |
H: 60.5 ° ° ° |
|
|
Jarak fokus jarak |
2m ~ 3m (wide ~ tele) |
|
|
Kecepatan Zoom |
Kira-kira. 4s (optik sudhut ~ tele) |
|
|
Video |
Format |
HD - TIVI, HDCVI, AHD, CVBS 4 ing 1 (OSD menu Switch) |
|
Output |
IVP - P Composping Output |
|
|
Resolusi |
TIVI / CVI / AHD: 25 / 30fps @ 2MP (1920 × 1080) CBVS: 700TVL |
|
|
Menu OSD |
ON / OFF (11 * 20 karakter) |
|
|
Pencerakan Paling Dhuwur |
Werna: 0,01luks / F1.5; B / W: 0.001lux / F1.5 |
|
|
Awan / wengi |
ICR (Auto, Werna, Ireng, Eksternal) |
|
|
S / N Rasio |
≥50db |
|
|
Pengurangan swara 2D |
Dhukungan |
|
|
Pengurangan Noise 3D |
Dhukungan (dhuwur / tengah / kurang) |
|
|
Mode Fokus |
Otomatis, Manual, Semi Otomatis, |
|
|
Mode cahya |
Otomatis, Manual |
|
|
Kacepetan rana |
Otomatis, 1/50 (1/60) ~ 1 / 100.000 |
|
|
Rana alon |
X2 |
|
|
Imbangan putih |
Otomatis, njero ruangan, ruangan, otomatis trek, siji push |
|
|
Blc |
Ing / mati |
|
|
Ngontrol Gain Auto |
Otomatis, Manual |
|
|
Masking Privasi |
ON / OFF, MAX. 8 wilayah |
|
|
Definisi |
Luwes |
|
|
Kontras |
Luwes |
|
|
Defog |
Dhukungan |
|
|
Pangilon |
ON / OFF, Puteri, Flip |
|
|
Free Gambar |
Ing / mati |
|
|
Antarmuka |
6pin, 2PIN 1.25mm terminal terminal, kanthi dewan buntut |
|
|
Protokol komunikasi |
Sony Visca, Pelco D, UTC (9.6KBPS 10bis) |
|
|
Kahanan operasi |
Kèndêl ingsun - 30 ° C ~ + 60 ° C / 20% dadi 80% RH |
|
|
Kahanan panyimpenan |
Kèndêl ingsun - 40 ° C ~ + 70 ° C / 20% dadi 95% RH |
|
|
Pasokan listrik |
DC 12V / 90MA ± 6ma (Range DC: 9 ~ 16V) |
|
|
Konsumsi daya |
Max. 4w |
|
|

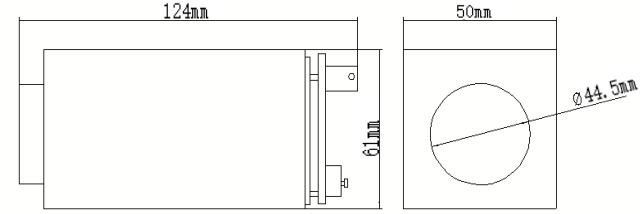

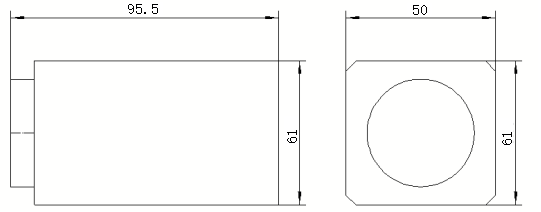

Ukuran (l * w * h) |
95.5mm * 50mm * 61mm (124mm * 51mm * 56mm karo Dewan Tail) |
|
|
Bobot |
250g (268G karo Dewan Tail) |
|
