2MP 20x zoom HDTTI, HDCVI, AHD, CVBS 4 ing 1 output kamera Modul
|
Model |
Sg - ZCM2020A |
|
|
Sensor |
Sensor gambar |
1 / 2.8 "Sony Imx307 CMOS |
|
Piksel sing efektif |
Kira-kira. 2.13 megapiksel |
|
|
Lensa |
Dawane fokus |
4.8mm ~ 96mm, 20x zoom optik |
|
Apenture |
F1.6 ~ F3.5 |
|
|
Bidang tampilan |
H: 61.8 ° ~ 3.6 ° |
|
|
Jarak fokus jarak |
100 ~ 1500mm (Wide ~) |
|
|
Kecepatan Zoom |
Kira-kira. 3s (optik sudhut ~ tele) |
|
|
Video |
Format |
HD - TIVI, HDCVI, AHD, CVBS 4 ing 1 (OSD menu Switch) |
|
Output |
IVP - P Composping Output |
|
|
Resolusi |
TIVI / CVI / AHD: 25 / 30fps @ 2MP (1920 × 1080) CBVS: 700TVL |
|
|
Menu OSD |
ON / OFF (11 * 20 karakter) |
|
|
Pencerakan Paling Dhuwur |
Werna: 0,01LUX / F1.6; B / W: 0.001lux / F1.6 |
|
|
Awan / wengi |
ICR (Auto, Werna, Ireng, Eksternal) |
|
|
S / N Rasio |
≥44db |
|
|
Pengurangan swara 2D |
Dhukungan |
|
|
Pengurangan Noise 3D |
Dhukungan (dhuwur / tengah / kurang) |
|
|
Mode Fokus |
Otomatis, Manual, Semi Otomatis, |
|
|
Mode cahya |
Otomatis, Manual |
|
|
Kacepetan rana |
Otomatis, 1/50 (1/60) ~ 1 / 100.000 |
|
|
Rana alon |
X2 |
|
|
Imbangan putih |
Otomatis, njero ruangan, ruangan, otomatis trek, siji push |
|
|
Blc |
Ing / mati |
|
|
Ngontrol Gain Auto |
Otomatis, Manual |
|
|
Masking Privasi |
ON / OFF, MAX. 8 wilayah |
|
|
Definisi |
Luwes |
|
|
Kontras |
Luwes |
|
|
Defog |
Dhukungan |
|
|
Pangilon |
ON / OFF, Puteri, Flip |
|
|
Free Gambar |
Ing / mati |
|
|
Antarmuka |
6pin, 2PIN 1.25mm terminal terminal, kanthi dewan buntut |
|
|
Protokol komunikasi |
Sony Visca, Pelco D, UTC (9.6KBPS 10bit) |
|
|
Kahanan operasi |
Kèndêl ingsun - 30 ° C ~ + 60 ° C / 20% dadi 80% RH |
|
|
Kahanan panyimpenan |
Kèndêl ingsun - 40 ° C ~ + 70 ° C / 20% dadi 95% RH |
|
|
Pasokan listrik |
DC 12V / 90MA ± 6ma (Range DC: 9 ~ 16V) |
|
|
Konsumsi daya |
Max. 4w |
|
|

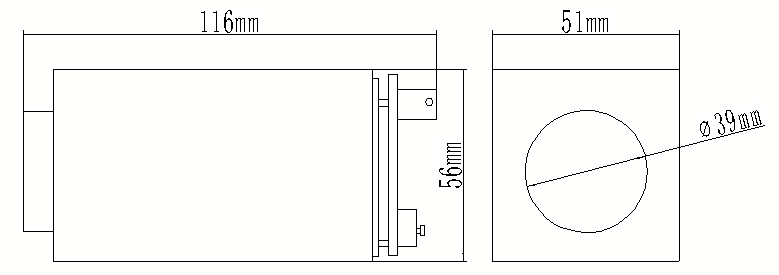

Ukuran (l * w * h) |
88mm * 51mm * 56mm (116mm * 51mm * 56mm karo Dewan Tail) |
|
|
Bobot |
213G (231G karo Dewan Tail) |
|
