Jaringan Zoom Zaom 2MP 20x AI ISP lan Modul Kamera Oli Digital Digital
|
Model |
Sg - zcm2020nMIL |
||||
|
Sensor |
Sensor gambar |
1/15 "Sony Starvis 2 Scan Cmos Progresif |
|||
|
Piksel sing efektif |
Kira-kira. 2.18 megapiksel |
||||
|
Lensa |
Dawane fokus |
5.4mm ~ 108mm, 20x zoom optik |
|||
|
Apenture |
F1.78 ~ F2.86 |
||||
|
Bidang tampilan |
H: 54.5 ° ° ° 5.95 °, V: 32.3 ° ~ 1.66 °, D: 61.2 ° |
||||
|
Jarak fokus jarak |
0.1m ~ 1.5m (sudhut ~ tele) |
||||
|
Kecepatan Zoom |
<4s (sudhut ~) |
||||
|
Dori jarak (Manungsa) |
Ndeteksi |
Mirsani |
Ngerteni |
Ngenali |
|
|
1,490m |
591m |
298m |
149m |
||
|
Video Jaringan |
Kompresi |
H.265 / H.264 / H.264h / H.264B / Mjpeg |
|||
|
Kapabilitas streaming |
3 lepen |
||||
|
Resolusi |
Aliran utama: 50 / 60fps @ 1920 × 1080; 50 / 60fps @ 1280 × 720 50fps @ 704 × 576; 50fps @ 352 × 288 Sub - Stream1: 50 / 60fps @ 1280 × 720; 60fps @ 704 × 480; 50fps @ 704 × 576 |
||||
|
Tingkat bit video |
32Kbps ~ 16MBPS |
||||
|
Audio |
AAC / mp2l2 |
||||
|
Video Mipi |
50hz: 50fps @ 2mp (1920 × 1080) 60hz: 60fps @ 2MP (1920 × 1080) |
||||
|
Jaringan |
Protokol jaringan |
IPv4, IPv6, http, http, tcp, tcp, rtsp, rtc, arp, ftp, icp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp |
|||
|
Api |
Onvif, http api, sdk, gb28181 |
||||
|
Browser web |
Yaiku, pinggiran, firefox, krom |
||||
|
Pangguna |
Nganti 20 pangguna, 2 level: Administrator, pangguna |
||||
|
Panyimpen |
SD Micro SD / SDHC / SDHC / SDXC (nganti 1TB) Storage Edge, FTP, NAS |
||||
|
Multicast |
Dhukungan |
||||
|
Nganyarke firmware |
Mung bisa nganyarke perangkat kukuh liwat port jaringan. |
||||
|
Acara Umum |
Gerak, Tamper, Kertu SD, Jaringan |
||||
|
IVs |
Tripwire, deteksi pager, intrusion, obyek sing ditinggalake, cepet - obah, deteksi parkir, deteksi pemilihan. |
||||
|
Bedane target |
Manungsa / kendharaan |
||||
|
S / N Rasio |
≥55db |
||||
|
Pencerakan Paling Dhuwur |
Werna: 0.0005lux / F1.78; B / W: 0.0001LUX / F1.78 |
||||
|
Pengurangan swara |
Suda Noise 2D / 3D / AI |
||||
|
Mode cahya |
Auto, Bukten Bukten, prioritas rana, entuk prioritas, manual |
||||
|
Ganti rugi cahya |
Dhukungan |
||||
|
Kacepetan rana |
1/ 1 ~ 1 / 30000s |
||||
|
Blc |
Dhukungan |
||||
|
Hlc |
Dhukungan |
||||
|
WDR |
Dhukungan |
||||
|
Imbangan putih |
Otomatis, manual, njero ruangan, ruangan, ATW, Sodium Lampu, lampu lampu, alam, siji push |
||||
|
Awan / wengi |
ICR (Auto / Manual) |
||||
|
Mode Fokus |
Otomatis, Manual, Semi Otomatis, Otomatis Cepet, Otomatis Cepet, Siji Push AF |
||||
|
Elektronik Defog |
Dhukungan |
||||
|
Pengurangan Haze Panas |
Dhukungan |
||||
|
Flip |
Dhukungan |
||||
|
EIS |
Dhukungan |
||||
|
Zoom digital |
16x |
||||
|
Kontrol eksternal |
Ttl |
||||
|
Antarmuka |
4pin eternet port, 6pin Power & UART port, port audio 5pin. 30pin Mipi |
||||
|
Protokol komunikasi |
Sony Visca, Pelco D / P |
||||
|
Kahanan operasi |
Kèndêl ingsun - 30 ° C ~ + 60 ° C / 20% dadi 80% RH |
||||
|
Kahanan panyimpenan |
Kèndêl ingsun - 40 ° C ~ + 70 ° C / 20% dadi 95% RH |
||||
|
Pasokan listrik |
DC 12V |
||||
|
Konsumsi daya |
Daya statis: 2.5w, daya olahraga: 3.6w |
||||
|

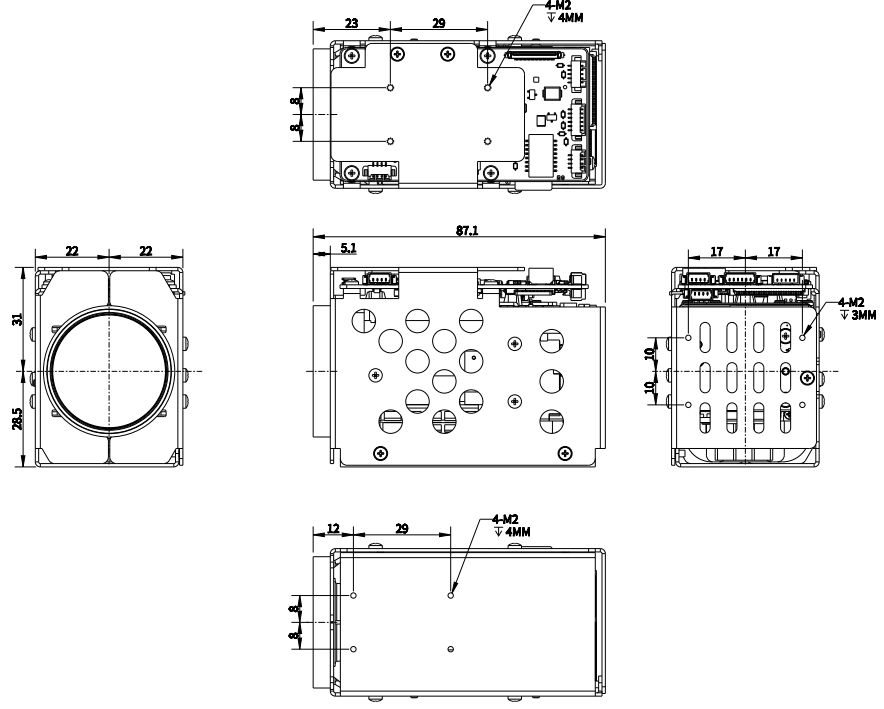

Ukuran (l * w * h) |
87.1mm * 44mm * 59,5mm |
||||
|
Bobot |
230g |
||||
