640x512 Modul kamera jaringan termal kanthi lensa 25mm (19mm, 13mm, 13mm)
Model | Sg - TCM06N2 - 25 | Sg - TCM06N2 - 19 | Sg - TCM06N2 - 13 | |
Sensor | Sensor gambar | MicroBolometer VOX sing ora dilacak | ||
| Resolusi | 640 x 512 | |||
| Ukuran Pixel | 12μm | |||
| Range Spectral | 8~14μm | |||
| Netd | ≤50MK @ 25℃, F # 1.0 | |||

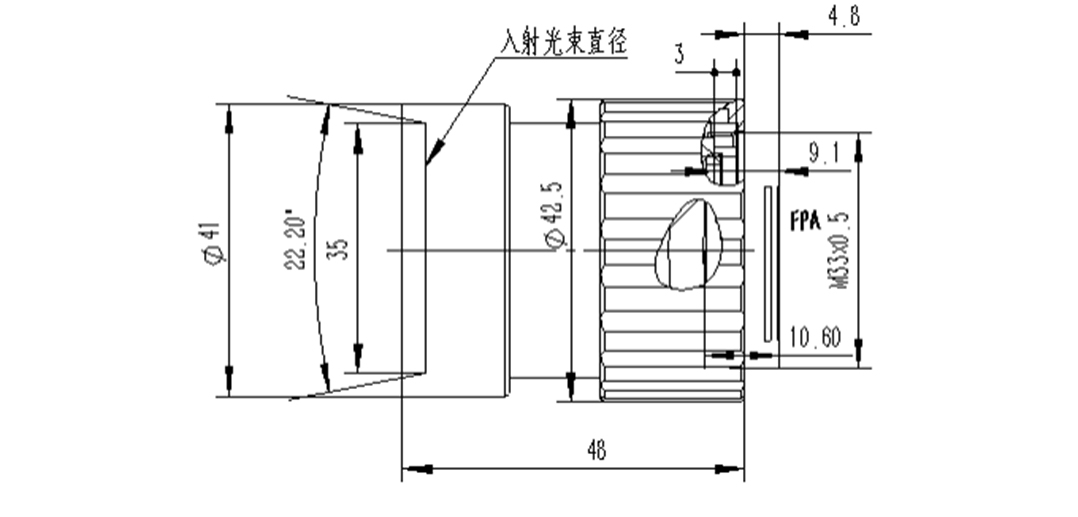

Lensa | Dawane fokus | 25mm Lensa athermalized | 19mm Lensa athermalized | 13mm Lensa athermalized |
| OptikZoom | N/A | N/A | N/A | |
| DZoom Igital | N / a | N / a | N / a | |
| F regane | F1.0 | F1.0 | F1.0 | |
| FOV | 17.5 ° X14.0 ° | 22.9 ° x18.4 ° | 32.9 ° x26.6 ° | |
Video | Kompresi | H.265 / H.264 / H.264H | ||
| Snapshot | JPeg | |||
| Werna Pseudo | Dhukungan: PutihPanas, Abang panas, wesi abang, pelangi 1,FulGurite, Pelangi 2, Fusion, Bluish Abang, Amber, Artik, Tint | |||
| STambetan | MAin Aliran:25fps@(1280 × 1024),25fps@(640 × 512) Sub stream:25fps@(704 × 675),25fps@(352 × 288) | |||
Jaringan | JaringanProtocol | IPv4 / IPv6, http, https, qos, ftp, smtp, upnp, upnp, dns, ddn, rtp, tcp, pppoe, 802.1x, filter IP | ||
| Interoperabilitas | Gambar OnvIF, Open API, SDK | |||
| Max.Sambungan | 20 | |||
Intelijen | NAcara Ormal | Deteksi gerakan,Deteksi Audio, konflik alamat IP, akses ilegal, anomalia panyimpenan | ||
| IVS Fungsi | Dhukungan fungsi cerdas:TripWire, Deteksi pager, intrusi, Deteksi Pemaruan. | |||
| Geni Deteksi | SUpport | |||
| Interface | Ethernet | 4Publes Pin Ethernet, 10m / 100m mandhiri - adaptasi | ||
| Avideo nalog | 1ch cvbs | |||
| ALawang ing / metu | 1/1 | |||
| AUdioIn / metu | 1/1 | |||
| RS485 | SUpport | |||
| Resolusi | 50Hz: 25fps@(1280 × 1024) | |||
| PanyimpenCniru | Kertu SD mikro, nganti 256g | |||
| Pasokan listrik | DC 12V, 1A | |||
| Kahanan operasi | -20 ° C~+ 60 ° C / 20% nganti 80%RH | |||
| Kahanan panyimpenan | -40 ° C~+65° C / 20%kanggo 95%RH | |||
| Dimensi (l *W*H) | Kira-kira. 113mm*51mm *61mm | Kira-kira. 113mm*51mm *61mm | Kira-kira. 113mm*51mm *61mm | |
| Bobot | Kira-kira. 285g | Kira-kira.285g | Kira-kira. 285g | |
