12um 640x512 USB Output Modul Thermal
|
Nomer Model |
Sg - HTM06U2 - T9 |
Sg - HTM06U2 - T15 |
Sg - HTM06U2 - T19 |
Sg - HTM06U2 - T25 |
|
Modul termal |
||||
|
Sensor gambar |
VOX Arrays Fokal Untuk |
|||
|
Max. Resolusi |
640 × 512 |
|||
|
Tarif pigura |
Luwes, 6hz nganti 30hz |
|||
|
Interval piksel |
12μm |
|||
|
WALKAN WALKAN |
8μm kanggo 14μm |
|||
|
Netd |
≤ 40mk (@ 25 ° C), F # = 1.0 |
|||
|
Lensa (dawa fokus) |
9.1mm |
15mm |
19mm |
25mm |
|
F nomer |
F1.0 |
F1.0 |
F1.0 |
F1.0 |
|
Ifov |
1.3mrad |
0,8mrad |
0,6mrad |
0,48mrad |
|
Bidang tampilan (H × V) |
48.3 ° × 38.6 ° |
29.3 ° × 23.4 ° |
22.8 ° × 18.4 ° |
17.46 ° × 14,01 ° |
|
Min. Fokus jarak |
2m |
5m |
7m |
8m |
|
Ukuran suhu |
||||
|
Range Suhu |
Kèndêl ingsun - 20 ° C ~ + 150 ° C & 100 ° C ~ 550 ° C |
|||
|
Akurasi suhu |
Max (± 2 ° C, ± 2%) ing suhu sekitar 25 ° C lan suhu obyek ing ndhuwur 0 ° C |
|||
|
Jarak suhu (adhedhasar 0,65 × 0.65m) |
10m (paling adoh) |
15m (paling adoh) |
20m (paling adoh) |
25m (paling adoh) |
|
Aturan thermografi |
3 Ukuran aturan pangukuran suhu, 21 aturan (10 poin, 10 wilayah, lan 1 baris) |
|||
|
Output data |
16 data suhu suhu |
|||
|
Tampilan gambar |
||||
|
Penyesuaian Kontras |
Ya |
|||
|
Penyesuaian padhang |
Ya |
|||
|
Palet |
15 palet warna sing bisa luwes, kanthi panas putih panas |
|||
|
FFC (mode Flat Ford Flat) |
Otomatis, Manual, Koreksi njaba |
|||
|
Dwe |
Ya |
|||
|
Umum |
||||
|
Antarmuka Hardware |
Usb2.0 fpc |
|||
|
Kekuwatan |
DC 5V ± 5% |
|||
|
Konsumsi daya |
≤0.55w |
≤0.55w |
≤0.55w |
≤0.65W |
|
Geter & kejut |
Getaran: Getaran Sinusoid, 20 m / s ², 3 - Axis Kaget: Gelombang Sine, 30 G / 11 MS, 3 - Axis 6 - Cara |
|||
|

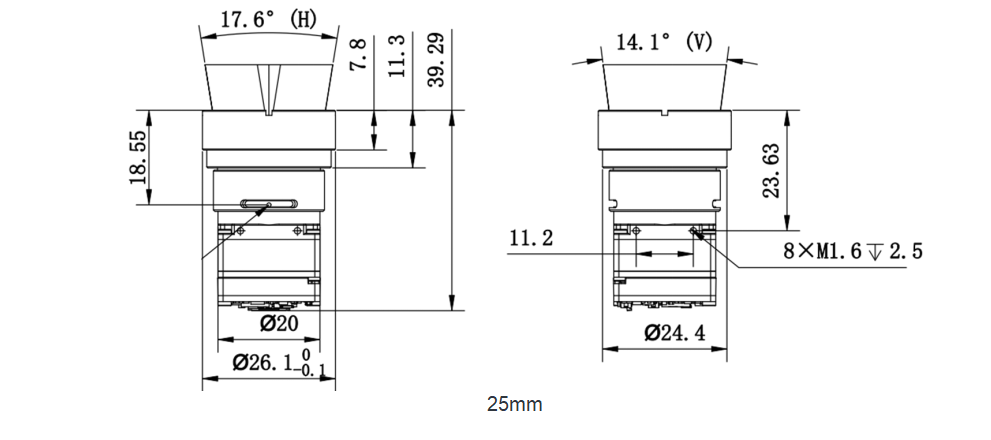

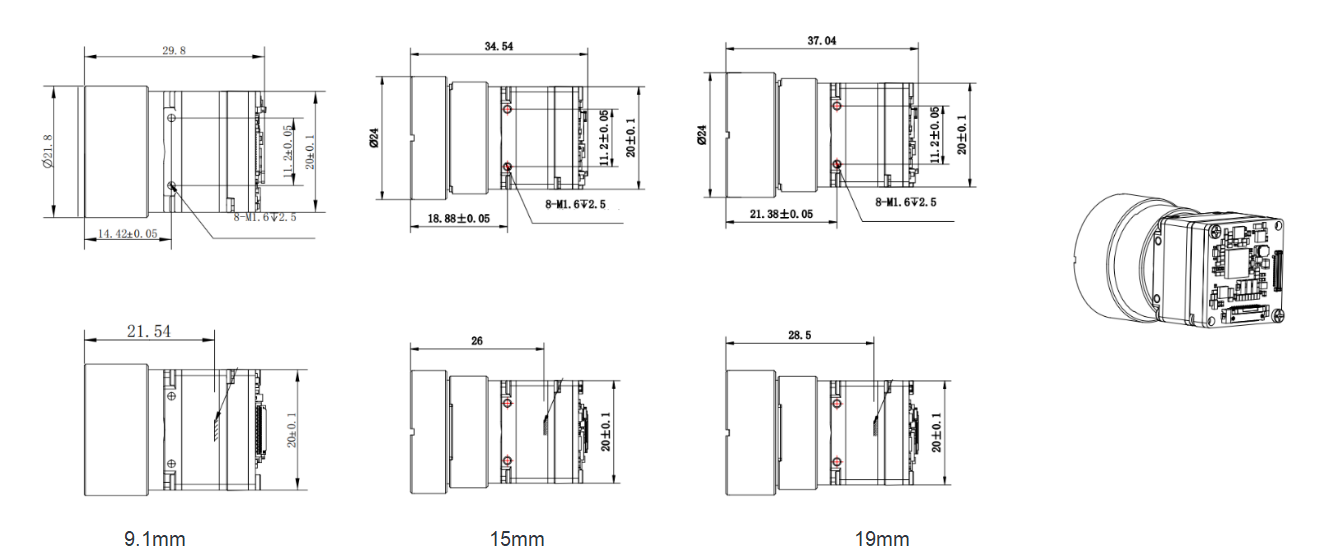

Dimensi (mm) |
29.8 * 20 * 20mm |
34.54 * 20 * 20mm |
37.04 * 20 * 20mm |
39.29 * 20 * 20mm |
|
Bobot |
≤22G |
≤28G |
≤32g |
≤33g |
|
Suhu |
Kèndêl ingsun - 40 ° C ~ 70 ° C |
|||
