640x512 Modul kamera jaringan termal kanthi 30 ~ 180mm lensa
|
Model |
Sg - TCM06N2 - m30180 |
|
|
Sensor |
Sensor gambar |
MicroBolometer VOX sing ora dilacak |
|
Resolusi |
640 × 512 |
|
|
Ukuran Pixel |
12μm |
|
|
Range Spectral |
8 ~ 14μm |
|
|
Netd |
≤40mk @ 25 ℃, F # 1.0 |
|
|
Lensa |
Dawane fokus |
30 ~ Lensa berita motor 180mm |
|
Zoom optik |
6x |
|
|
Zoom digital |
8x |
|
|
F regane |
F1.0 ~ F1.4 |
|
|
FOV |
14.59 ° ° ° ~.44 ° × 1.96 ° |
|
|
Video |
Kompresi |
H.265 / H.264B / H.264m / H.264h / Mjpeg |
|
Snapshot |
Jpeg |
|
|
Werna Pseudo |
Dhukungan: Panas Panas, Putih Panas, Pelangi 1, Pelangi, Pelangi 2, Fusion, Bluish Abang, Amber, Artik, Tint |
|
|
Aliran |
Aliran utama: 25 / 30fps @ 1280 × 1024, 25 / 30fps @ 1280 × 720, 25 / 30fps @ 640 × 512 Sub - Stream: 25 / 30fps @ 640 × 512, 25 / 30fps @ 352 × 288 |
|
|
Jaringan |
Protokol jaringan |
IPv4, IPv6, http, http, tcp, tcp, rtsp, rtc, arp, ftp, icp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp |
|
Interoperabilitas |
Onvif, http api, sdk, gb28181 |
|
|
Max. Sambungan |
20 |
|
|
Intelijen |
Acara Umum |
Gerak, Tamper, Kertu SD, Jaringan |
|
IVS Fungsi |
Tripwire, deteksi pager, intrusion, obyek sing ditinggalake, cepet - obah, deteksi parkir, deteksi pemilihan. |
|
|
Deteksi geni |
Dhukungan |
|
|
Antarmuka |
Ethernet |
4pin eternet port, 10m / 100m dhewe - Adaptasi |
|
Video analog |
1ch cvbs |
|
|
Weker ing / metu |
1/1 |
|
|
Audio ing / metu |
1/1 |
|
|
RS485 |
Dhukungan |
|
|
Resolusi |
50hz: 25fps @ (1280 × 1024) |
|
|
Kapabilitas panyimpenan |
SD Micro SD / SDHC / SDHC / SDXC (nganti 1TB) Storage Edge, FTP, NAS |
|
|
Pasokan listrik |
DC 12V, 1A |
|
|
Kahanan operasi |
Kèndêl ingsun - 30 ° C ~ + 60 ° C / 20% dadi 80% RH |
|
|
Kahanan panyimpenan |
Kèndêl ingsun - 40 ° C ~ + 70 ° C / 20% dadi 95% RH |
|
|

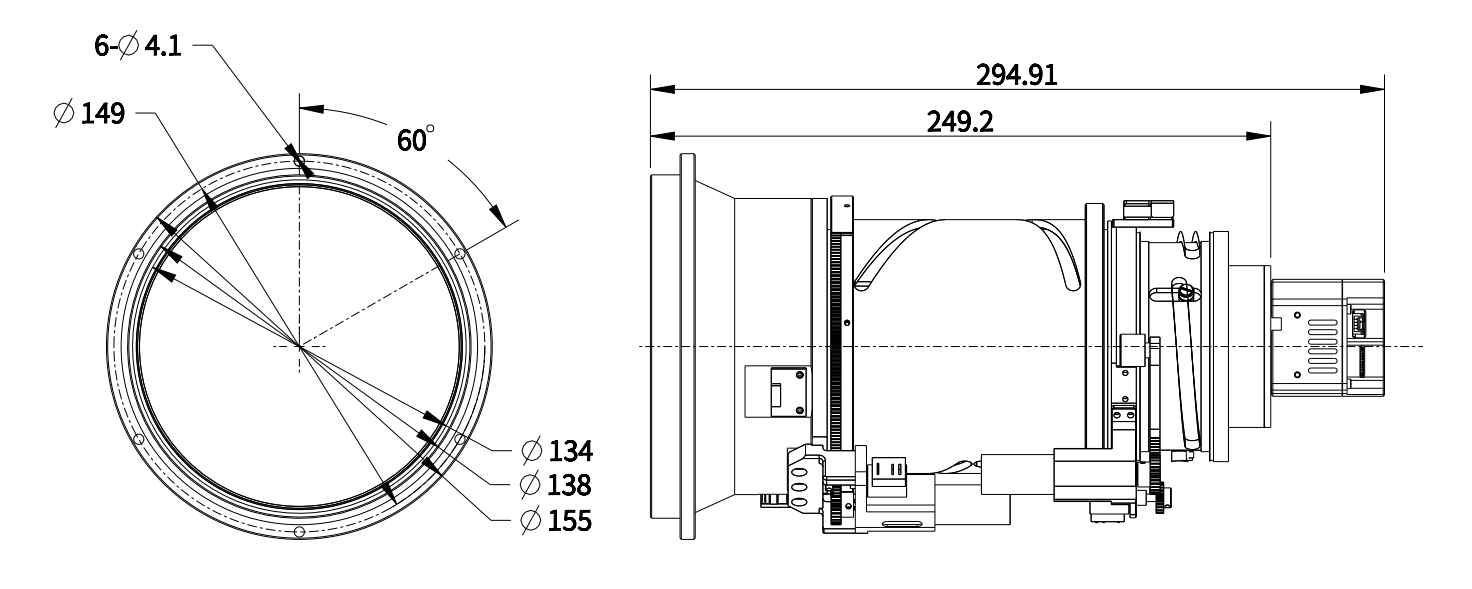

Ukuran (l * w * h) |
Kira-kira. 295mm * 155mm * 155mm |
|
|
Bobot |
Kira-kira. 3.2kg |
|
