1280x1024 Modul Kamera Jaringan termal kanthi lensa bermotor 50 ~ 350mm
|
Model |
Sg - TCM12N2 -M50350 |
|
|
Sensor |
Sensor gambar |
MicroBolometer VOX sing ora dilacak |
|
Resolusi |
1280 × 1024 |
|
|
Tarif pigura |
50hz |
|
|
Pixel Pitch |
12μm |
|
|
Range Spectral |
8 ~ 14μm |
|
|
Netd |
≤35mk @ 25 ° C, F # 1.0 |
|
|
Lensa |
Lapisan |
DLC |
|
Dawane fokus |
50 ~ 350mm |
|
|
Jinis lensa |
Motor |
|
|
Zoom optik |
7x |
|
|
Zoom digital |
8x |
|
|
F regane |
F1.0 ~ F1.4 |
|
|
FOV |
17.46 ° × 14.01 ° ~2.01 ° |
|
|
Video |
Kompresi |
H.265 / H.264 / H.264H / H.264B / Mjpeg |
|
Kompresi Audio |
AAC / mp2l2 |
|
|
Snapshot |
Jpeg |
|
|
Resolusi |
Aliran utama: 50fps @ (1280 × 1024, 1280 × 720, 704 × 576, 704 × 480) |
|
|
Tingkat bit video |
4kbps ~ 40mbps |
|
|
Jaringan |
Protokol jaringan |
IPv4, IPv6, http, http, tcp, tcp, rtsp, rtc, arp, ftp, icp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp |
|
Api |
Onvif, http api, sdk, gb28181 |
|
|
Keamanan jaringan |
Sertifikasi pangguna, panyaring IP / Mac, enkripsi https, IEEE 802.1X ngakses akses |
|
|
Browser web |
Yaiku, pinggiran, firefox, krom |
|
|
Pangguna |
Nganti 20 pangguna, 2 level: Administrator, pangguna |
|
|
Panyimpen |
SD Micro SD / SDHC / SDHC / SDXC (nganti 1TB) Storage Edge, FTP, NAS |
|
|
Multicast |
Dhukungan |
|
|
Intelijen |
Perlindhungan perimeter |
Tripwire, deteksi pager, intrusion |
|
Analisa prilaku |
Objek sing ditinggalake, Ngilangi Objek, Cepet - Pindhah, Deteksi Akeh, Deteksi Pemaruan, Deteksi Parkir |
|
|
Acara |
Deteksi gerakan, video, pangowahan video, deteksi audio, jaringan ora dikirim, konflik IP, sing ora ana akses, Anomaly panyimpenan |
|
|
Deteksi geni |
Dhukungan |
|
|
Antarmuka |
Ethernet |
4pin eternet port, 10m / 100m dhewe - Adaptasi |
|
Weker ing / metu |
1/1 |
|
|
Audio ing / metu |
1/1 |
|
|
Antarmuka Kontrol |
1x TTL 3.3v (Protokol Visca), 1x RS485 (Pelco Protocol) (Opsional TTL 3.3v) |
|
|
Output Video |
Jaringan |
|
|
Werna Pseudo |
Panas putih, panas ireng, campuran, warna wesi, lan sapiturute. 20 pilihan |
|
|
Mode Fokus |
Otomatis / manual / siji push af |
|
|
FFC Mode |
Otomatis / Manas |
|
|
Setelan gambar |
Padhang, kontras, ketajaman, lan nyuda swara temporal |
|
|
EIS |
Dhukungan |
|
|
OSD |
Dhukungan |
|
|
Flip |
Dhukungan |
|
|
Pangilon |
Dhukungan |
|
|
Pasokan listrik |
DC 12V, 1A |
|
|
Konsumsi daya khas |
3.8w |
|
|
Konsumsi Daya Peak |
7.5W |
|
|
Kahanan operasi |
Kèndêl ingsun - 30 ° C ~ + 60 ° C / 20% dadi 80% RH |
|
|
Kahanan panyimpenan |
Kèndêl ingsun - 40 ° C ~ + 70 ° C / 20% dadi 95% RH |
|
|
Tingkat Perlindhungan Lensa 1st |
IP67 |
|
|

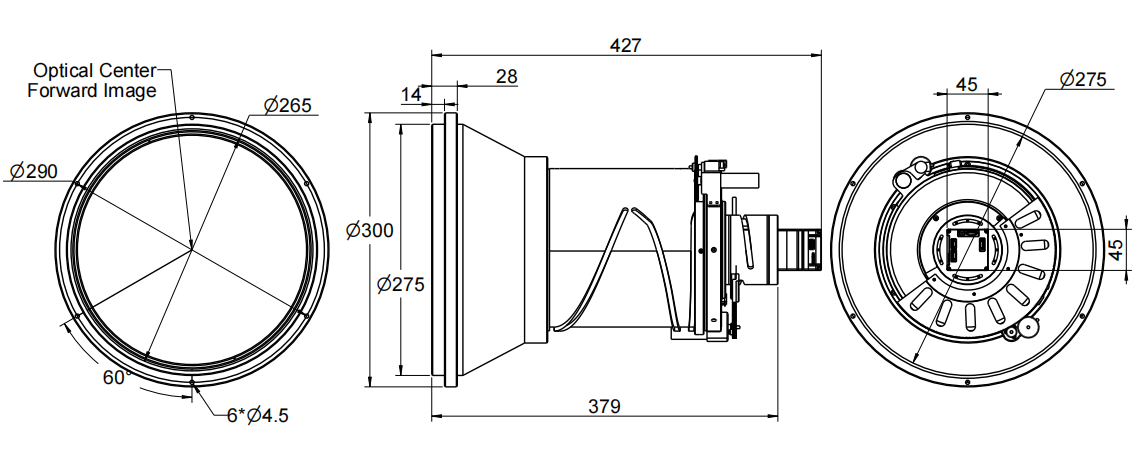

Ukuran unit (l * w * h) |
Φ300 * 427mm |
|
|
Ukuran kemasan (l * w * h) |
640 * 490 * 520mm |
|
|
Bobot |
19.2KG (nganggo kurungan), 13,6kg (tanpa kurungan) |
|
DRI Jarak
Target: Ukuran manungsa yaiku 1,8m × 0.5m (ukuran kritis), ukuran kendaraan yaiku 1,0m × 4.0M × 4.0M × 4.0M (ukuran kritis); Ukuran geni yaiku 0.13m × 0.13m (ukuran kritis yaiku 0.13m).
Deteksi target, pangenalan lan identifikasi jarak diwilang miturut kritéria Johnson.
Jarak deteksi, pangenalan lan identifikasi sing disaranake kaya ing ngisor iki:
|
Lensa |
Ndeteksi |
Ngerteni |
Ngenali |
||||||
|
Kendaraan |
Manungsa |
Geni |
Kendaraan |
Manungsa |
Geni |
Kendaraan |
Manungsa |
Geni |
|
|
50mm |
6389m (20961ft) |
2083m (6834ft) |
361m (1184ft) |
1597m (5240ft) |
521m (1709ft) |
90m (295ft) |
799mm (2621ft) |
260m (853ft) |
45m (148ft) |
|
350mm |
44722m (146726FT) |
14583m (47844ft) |
2528m (2894ft) |
11181m (36683ft) |
3646m (11962ft) |
632m (2044ft) |
5590m (18340ft) |
1823m (5981ft) |
361m (1184ft) |
