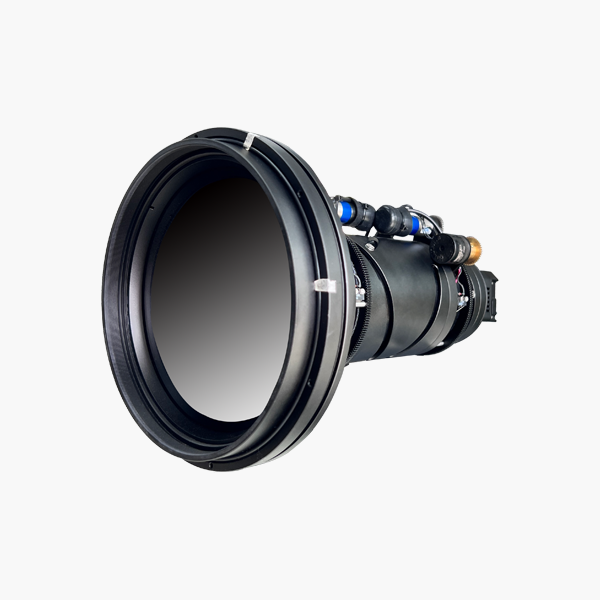

1280x1024 Modul kamera jaringan termal kanthi 25 ~ 225mm (30 ~ 150mm) lensa
|
Model |
Sg - TCM12N2 -M25225 |
Sg - TCM12N2 -M30150 |
|
|
Sensor |
Sensor gambar |
MicroBolometer VOX sing ora dilacak |
|
|
Resolusi |
1280 × 1024 |
||
|
Tarif pigura |
50hz |
||
|
Pixel Pitch |
12μm |
||
|
Range Spectral |
8 ~ 14μm |
||
|
Netd |
≤35mk @ 25 ° C, F # 1.0 |
||
|
Lensa |
Lapisan |
DLC |
|
|
Dawane fokus |
25 ~ 225mm |
30 ~ 150mm |
|
|
Jinis lensa |
Motor |
Motor |
|
|
Zoom optik |
9x |
5x |
|
|
Zoom digital |
8x |
8x |
|
|
F regane |
F1.0 ~ F1.5 |
F1.0 ~ F1.2 |
|
|
FOV |
34.15 ° × 27.61 ° ~ 3.91 ° × 3.13 ° |
28.72 ° × 23.15 ° ~ 5.86 ° × 4.69 ° |
|
|
Video |
Kompresi |
H.265 / H.264 / H.264H / H.264B / Mjpeg |
|
|
Kompresi Audio |
AAC / mp2l2 |
||
|
Snapshot |
Jpeg |
||
|
Resolusi |
Aliran utama: 50fps @ (1280 × 1024, 1280 × 720, 704 × 576, 704 × 480) |
||
|
Tingkat bit video |
4kbps ~ 40mbps |
||
|
Jaringan |
Protokol jaringan |
IPv4, IPv6, http, http, tcp, tcp, rtsp, rtc, arp, ftp, icp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp |
|
|
Api |
Onvif, http api, sdk, gb28181 |
||
|
Keamanan jaringan |
Sertifikasi pangguna, panyaring IP / Mac, enkripsi https, IEEE 802.1X ngakses akses |
||
|
Browser web |
Yaiku, pinggiran, firefox, krom |
||
|
Pangguna |
Nganti 20 pangguna, 2 level: Administrator, pangguna |
||
|
Panyimpen |
SD Micro SD / SDHC / SDHC / SDXC (nganti 1TB) Storage Edge, FTP, NAS |
||
|
Multicast |
Dhukungan |
||
|
Intelijen |
Perlindhungan perimeter |
Tripwire, deteksi pager, intrusion |
|
|
Analisa prilaku |
Objek sing ditinggalake, Ngilangi Objek, Cepet - Pindhah, Deteksi Akeh, Deteksi Pemaruan, Deteksi Parkir |
||
|
Acara |
Deteksi gerakan, video, pangowahan video, deteksi audio, jaringan ora dikirim, konflik IP, sing ora ana akses, Anomaly panyimpenan |
||
|
Deteksi geni |
Dhukungan |
||
|
Antarmuka |
Ethernet |
4pin eternet port, 10m / 100m dhewe - Adaptasi |
|
|
Weker ing / metu |
1/1 |
||
|
Audio ing / metu |
1/1 |
||
|
Antarmuka Kontrol |
1x TTL 3.3v (Protokol Visca), 1x RS485 (Pelco Protocol) (Opsional TTL 3.3v) |
||
|
Output Video |
Jaringan |
||
|
Werna Pseudo |
Panas putih, panas ireng, campuran, warna wesi, lan sapiturute. 20 pilihan |
||
|
Mode Fokus |
Otomatis / manual / siji push af |
||
|
FFC Mode |
Otomatis / Manas |
||
|
Setelan gambar |
Padhang, kontras, ketajaman, lan nyuda swara temporal |
||
|
EIS |
Dhukungan |
||
|
OSD |
Dhukungan |
||
|
Flip |
Dhukungan |
||
|
Pangilon |
Dhukungan |
||
|
Pasokan listrik |
DC 12V, 1A |
||
|
Konsumsi daya khas |
3.8w |
||
|
Konsumsi Daya Peak |
7.5w |
7.3w |
|
|
Kahanan operasi |
Kèndêl ingsun - 30 ° C ~ + 60 ° C / 20% dadi 80% RH |
||
|
Kahanan panyimpenan |
Kèndêl ingsun - 40 ° C ~ + 70 ° C / 20% dadi 95% RH |
||
|
Tingkat Perlindhungan Lensa 1st |
IP67 |
||
|

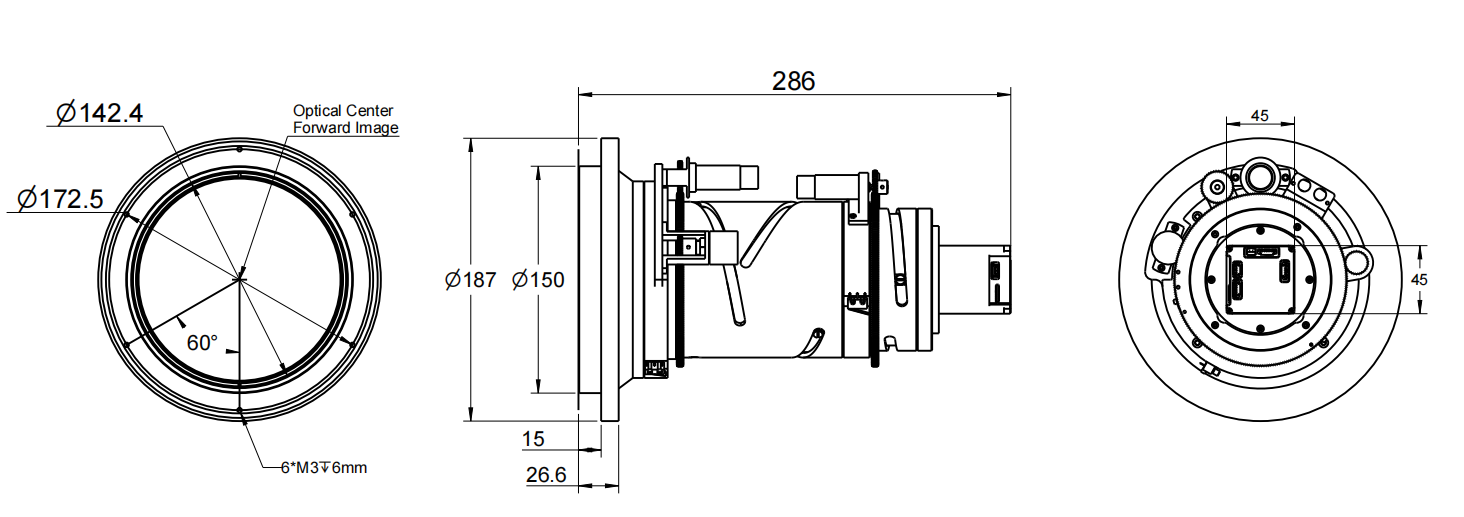

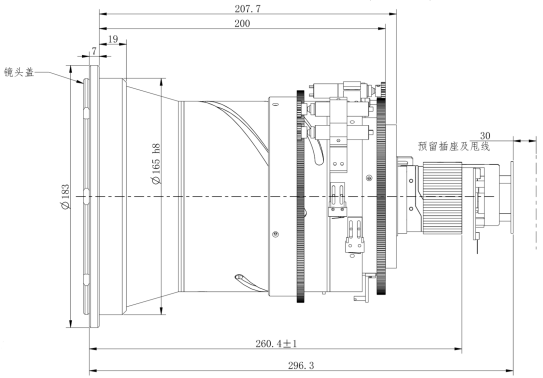

Ukuran (l * w * h) |
Φ195 * 321mm |
Φ187 * 286 (mm) |
|
|
Bobot |
Kira-kira. 5kg |
Kira-kira. 4.6Kg |
|
DRI Jarak
Target: Ukuran manungsa yaiku 1,8m × 0.5m (ukuran kritis), ukuran kendaraan yaiku 1,0m × 4.0M × 4.0M × 4.0M (ukuran kritis); Ukuran geni yaiku 0.13m × 0.13m (ukuran kritis yaiku 0.13m).
Deteksi target, pangenalan lan identifikasi jarak diwilang miturut kritéria Johnson.
Jarak deteksi, pangenalan lan identifikasi sing disaranake kaya ing ngisor iki:
|
Lensa |
Detect |
REcoNOzing |
Identify |
||||||
|
Kendaraan |
Manungsa |
Geni |
Kendaraan |
Manungsa |
Geni |
Kendaraan |
Manungsa |
Geni |
|
|
30mm |
3833m (12575ft) |
1250m (4101FT) |
217m (712ft) |
958m (3143ft) |
313m (1027FT) |
54m (177ft) |
479m (1572ft) |
156m (512ft) |
27m (89ft) |
|
150mm |
19167m (62884ft) |
6250m (20505ft) |
1083m (3553ft) |
4792m (15722ft) |
1563m (5128ft) |
271m (899ft) |
2396m (7861ft) |
781m (2,562ft) |
135m (443ft) |
|
225mm |
28750m (94324ft) |
9375m (30758FT) |
1625m (5331ft) |
7188m (23583ft) |
2344m (7690fT) |
406m (1332ft) |
3594m (11791ft) |
1172m (3845ft) |
203m (666ft) |
