1280x1024 Termal + 2MP 90x Optical Zoom bi - Kamera Pewedhen Precision Network Tentang PTZ
|
Model |
Sg - PTZ2090Nio-12T30120 |
Sg - PTZ2090NioKèndêl ingsun - 6T30120 |
||||
|
Termal |
||||||
|
Sensor |
Sensor gambar |
MicroBolometer VOX sing ora dilacak |
MicroBolometer VOX sing ora dilacak |
|||
|
Resolusi |
1280 × 1024 |
640 × 512 |
||||
|
Ukuran Pixel |
12μm |
12μm |
||||
|
Range Spectral |
8 ~ 14μm |
8 ~ 14μm |
||||
|
Netd |
≤50mk @ 25 ° C, F # 1.0 |
≤40mk @ 25 ° C, F # 1.0 |
||||
|
Lensa |
Dawane fokus |
30 ~ 120mm lensa motor |
30 ~ 120mm lensa motor |
|||
|
Zoom optik |
4x |
4x |
||||
|
Zoom digital |
4x |
8x |
||||
|
Apenture |
F1.0 ~ F1.4 |
F1.0 ~ F1.4 |
||||
|
FOV |
28.72 ° × 23.15 ° ° ~ 7,,832 ° |
14.59 ° ° ~ 3,67 ° |
||||
|
Video |
Kompresi |
H.265 / H.264 / H.264B / H.264h / Mjpeg |
||||
|
Snapshot |
Jpeg |
|||||
|
Werna Pseudo |
Dhukungan: Panas Panas, Putih Panas, Pelangi 1, Pelangi, Pelangi 2, Fusion, Bluish Abang, Amber, Artik, Tint |
|||||
|
Aliran |
Aliran utama: 25 / 30fps @ 1280 × 1024, 25fps @ 704 × 576, 30fps @ 704 × 480 × 480 Sub - Stream: 25fps @ 704 × 576, 30fps @ 704 × 480, 25fps @ 352 × 288, 25fps @ 352 × 240 |
|||||
|
Jaringan |
Protokol jaringan |
IPv4, IPv6, http, http, tcp, tcp, rtsp, rtc, arp, ftp, icp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp |
||||
|
Interoperabilitas |
Onvif, http api, sdk, gb28181 |
|||||
|
Max. Sambungan |
20 |
|||||
|
Intelijen |
Acara Umum |
Gerak, Tamper, Kertu SD, Jaringan |
||||
|
IVS Fungsi |
Tripwire, deteksi pager, intrusion, obyek sing ditinggalake, cepet - obah, deteksi parkir, deteksi pemilihan. |
|||||
|
Deteksi geni |
Dhukungan |
|||||
|
Kapabilitas panyimpenan |
SD Micro SD / SDHC / SDHC / SDXC (nganti 1TB) Storage Edge, FTP, NAS |
|||||
|
Visible |
||||||
|
Sensor |
Sensor gambar |
1 / 1,8 "Sony Starvis 2 Scan Cmos Progresif |
||||
|
Piksel sing efektif |
Kira-kira. 8.40 megapiksel |
|||||
|
Lensa |
Dawane fokus |
6mm ~ 540mm, zoom optik 90x |
||||
|
Apenture |
F1.4 ~ F4.87 |
|||||
|
Bidang tampilan |
H: 65.24 ° ~ 0,81 °, V: 39.60 ° ° iki, D: 726 ° ~ 0.94.58 ° ~ 0,94 ° |
|||||
|
Jarak fokus jarak |
1m ~ 10m (sudhut ~) |
|||||
|
Kecepatan Zoom |
<10s (sudhut ~) |
|||||
|
Dori jarak (Manungsa) |
Ndeteksi |
Mirsani |
Ngerteni |
Ngenali |
||
|
10,800m |
4,286m |
2,160m |
1,080m |
|||
|
Video |
Kompresi |
H.265 / H.264B / H.264m / H.264h / Mjpeg |
||||
|
Kapabilitas streaming |
3 lepen |
|||||
|
Resolusi |
Aliran utama: 50 / 60fps @ 1920 × 1080; 50 / 60fps @ 1280 × 720 Sub - Stream1: 50 / 60fps @ 704 × 576; 50 / 60fps @ 640 × 480 Sub - stream2: 25 / 30fps @ 1920 × 1080; 25 / 30fps @ 1280 × 720 |
|||||
|
Tingkat bit video |
32Kbps ~ 16MBPS |
|||||
|
Audio |
AAC / mp2l2 |
|||||
|
Jaringan |
Protokol jaringan |
IPv4, IPv6, http, http, tcp, tcp, rtsp, rtc, arp, ftp, icp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp |
||||
|
Api |
Onvif, http api, sdk |
|||||
|
Browser web |
Yaiku, pinggiran, firefox, krom |
|||||
|
Pangguna |
Nganti 20 pangguna, 2 level: Administrator, pangguna |
|||||
|
Panyimpen |
SD Micro SD / SDHC / SDHC / SDXC (nganti 1TB) Storage Edge, FTP, NAS |
|||||
|
Multicast |
Dhukungan |
|||||
|
Acara Umum |
Gerak, Tamper, Kertu SD, Jaringan |
|||||
|
IVs |
Tripwire, deteksi pager, intrusion, obyek sing ditinggalake, cepet - obah, deteksi parkir, deteksi pemilihan. |
|||||
|
Bedane target |
Manungsa / kendharaan |
|||||
|
S / N Rasio |
≥55db |
|||||
|
Pencerakan Paling Dhuwur |
Werna: 0,001lux / f1.4; B / W: 0.0001LUX / F1.4 |
|||||
|
Pengurangan swara |
Suda Noise 2D / 3D / AI |
|||||
|
Mode cahya |
Auto, Bukten Bukten, prioritas rana, entuk prioritas, manual |
|||||
|
Ganti rugi cahya |
Dhukungan |
|||||
|
Kacepetan rana |
1/ 1 ~ 1 / 30000s |
|||||
|
Blc |
Dhukungan |
|||||
|
Hlc |
Dhukungan |
|||||
|
WDR |
Dhukungan |
|||||
|
Imbangan putih |
Otomatis, manual, njero ruangan, ruangan, ATW, Sodium Lampu, lampu lampu, alam, siji push |
|||||
|
Awan / wengi |
Listrik, icr (otomatis / manual) |
|||||
|
Mode Fokus |
Otomatis, Manual, Semi Otomatis, Otomatis Cepet, Otomatis Cepet, Siji Push AF |
|||||
|
Elektronik Defog |
Dhukungan |
|||||
|
Optik Defog |
Dhukungan, 750nm ~ 1100NM saluran optik |
|||||
|
Pengurangan Haze Panas |
Dhukungan |
|||||
|
Flip |
Dhukungan |
|||||
|
EIS |
Dhukungan |
|||||
|
Zoom digital |
16x |
|||||
|
Pan miring |
||||||
|
Motor |
Harmonic Motor |
|||||
|
Daya ing / mateni dhewe - Priksa |
Ya |
|||||
|
Preset |
255 |
|||||
|
Mode komunikasi |
RS485 |
|||||
|
Pan / Range Tilt |
Panci: 360 ° muter; Miring: - 70 ° ~ + 20 ° |
|||||
|
Kacepetan panci |
Konfigurasi, Pan: 0,01 ° ~ ° / s |
|||||
|
Kecepatan miring |
Konfigurasi, Ngiringan: 0,011 ° ~ 20 ° / s |
|||||
|
Presisi Pra - posisi |
± 0,01 ° |
|||||
|
Scan |
Dhukungan |
|||||
|
Wiper |
Dhukungan (kanggo kamera sing katon) |
|||||
|
Antarmuka |
||||||
|
Antarmuka Daya |
Dhukungan |
|||||
|
Ethernet |
1 × RJ45 (10base - T / 100base - TX) |
|||||
|
Audio i / o |
1/1 (kanggo kamera sing katon mung) |
|||||
|
Alarm I / O |
1/1 |
|||||
|
RS485 |
1 |
|||||
|
Umum |
||||||
|
Anti banyu |
IP66, TVS 6000V Perlindhungan, Pencegahan Surge |
|||||
|
Kekuwatan |
Input Daya DC 48V |
|||||
|
Konsumsi daya |
80w |
|||||
|
Kelembapan |
0 ~ 90% Non - Kondensing |
|||||
|
Suhu |
Kèndêl ingsun - 40 ° C ~ 70 ° C / 20% dadi 90% RH |
|||||
|

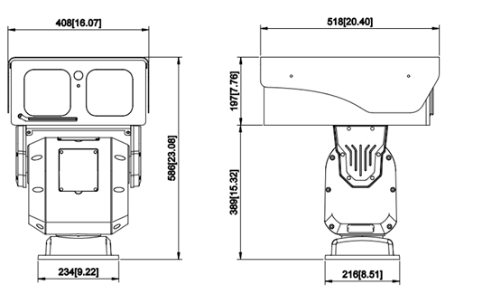

Ukuran (l * w * h) |
Kira-kira. 518mm * 408mm * 586mm |
|||||
|
Bobot |
52Kg |
|||||
