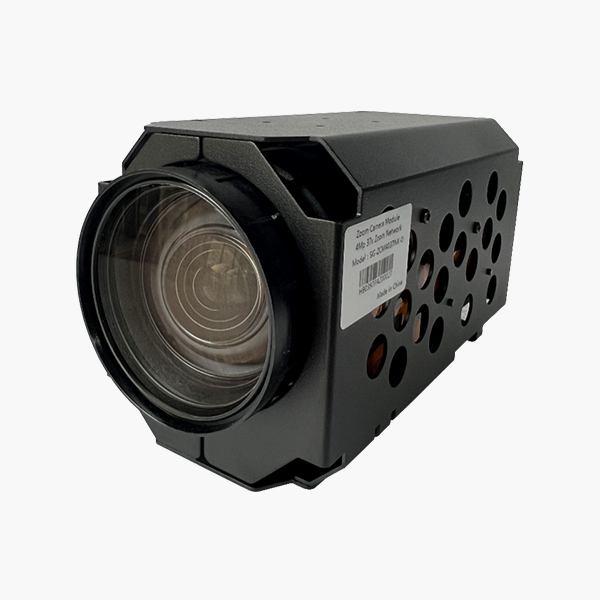

1280x1024 AI ISP Based Network lan Modul Kamera Swara Mipi Dual
|
Model |
Sg - Swz12nMI2-7200 |
|
|
Sensor |
Sensor gambar |
1/2 "Sony inaas shutter swir SENSOR IMX990 |
|
Piksel sing efektif |
Kira-kira. 1.34MP |
|
|
Ukuran Pixel |
5μm |
|
|
Range Spectral |
400 ~ 1700nm |
|
|
Lensa |
Gelombang Lensa Lensa |
1000 ~ 1700nm |
|
Icr |
Ndhukung 2 mode: Band Wide: 1000 ~ 1700nm Band sempit: 1450 ~ 1700nm |
|
|
Dawane fokus |
7.1mm ~ 200mm, 28x zoom optik |
|
|
Jinis lensa |
Pemandu Stepper Zoom Len |
|
|
Apenture |
F1.69 ~ F4.84 |
|
|
Bidang tampilan |
H: 48.5252 ° ~ 1.83 °, V: 39.65 ° ° ~ 1.47 °, D: 59,9 ° ° ° ° |
|
|
Jarak fokus jarak |
1m ~ 5m (sudhut ~) |
|
|
Kecepatan Zoom |
<4s (optik sudhut ~ tele) |
|
|
Video |
Kompresi |
H.265 / H.264 / H.264H / H.264.B / Mjpeg |
|
Resolusi |
Aliran utama: 50 / 60fps @ (1280 × 1024, 704 × 480) Sub stream: 50 / 60fps @ (640 × 512, 352 × 240) |
|
|
Tingkat bit video |
32Kbps ~ 16MBPS |
|
|
Audio |
AAC / mp2l2 |
|
|
Mipi |
25/30/50 / 60fps @ 2MP (1280 × 1024) |
|
|
Jaringan |
Protokol jaringan |
IPv4, IPv6, http, http, tcp, tcp, rtsp, rtc, arp, ftp, icp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp, qp |
|
Api |
Onvif (profil s, g, profil t), http api, sdk, gb28181 |
|
|
Pangguna |
Nganti 20 pangguna, 2 level: Administrator, pangguna |
|
|
Panyimpen |
Kartu microSD / SDHC / SDXC (nganti 1TB) Storage Edge, FTP, NAS |
|
|
Multicast |
Dhukungan |
|
|
Intelijen |
Acara normal |
Deteksi gerakan, deteksi audio, konflik alamat IP, akses ilegal, anomalia panyimpenan, pamblokiran video, pangowahan jaringan, pangowahan jaringan, pangowahan jaringan |
|
IVS Fungsi |
Tripwire, deteksi pager, intrusion, obyek sing ditinggalake, cepet - obah, deteksi parkir, deteksi pemilihan. |
|
|
Nganyarke firmware |
Mung bisa nganyarke perangkat kukuh liwat port jaringan |
|
|
Acara Umum |
Gerak, Tamper, Kertu SD, Jaringan |
|
|
IVs |
Tripwire, deteksi pager, intrusion, obyek sing ditinggalake, cepet - obah, deteksi parkir, deteksi pemilihan. |
|
|
Pengurangan swara |
2D / 3D |
|
|
Mode cahya |
MANUAL, AUTO, APAPORE PRIORITI, PRIORITTER RATING |
|
|
Ganti rugi cahya |
Dhukungan |
|
|
Kacepetan rana |
1/ 1 ~ 1 / 30000s |
|
|
Mode Fokus |
Auto / Manual / Semi Otomatis / Siji Push AF |
|
|
Elektronik Defog |
Dhukungan |
|
|
Pengurangan Haze Panas |
Dhukungan |
|
|
Flip |
Dhukungan |
|
|
EIS |
Dhukungan |
|
|
Zoom digital |
16x |
|
|
Ethernet |
4pin eternet port, 10m / 100m dhewe - Adaptasi |
|
|
Kontrol eksternal |
Ttl |
|
|
Antarmuka |
4pin Ethernet Port, 6pin Seral & Power Port, 5pin Port Audio. 30pin Mipi |
|
|
Protokol komunikasi |
Sony Visca, Pelco D / P |
|
|
Kahanan operasi |
Kèndêl ingsun - 30 ~ + 60 ° C / 20% ~ 80% RH |
|
|
Kahanan panyimpenan |
Kèndêl ingsun - 40 ~ + 70 ° C / 20% ~ 95% RH |
|
|
Pasokan listrik |
DC 12V |
|
|
Konsumsi daya (TBD) |
Daya statis: 4.5W, Kekuwatan Olahraga: 5.5w |
|
|

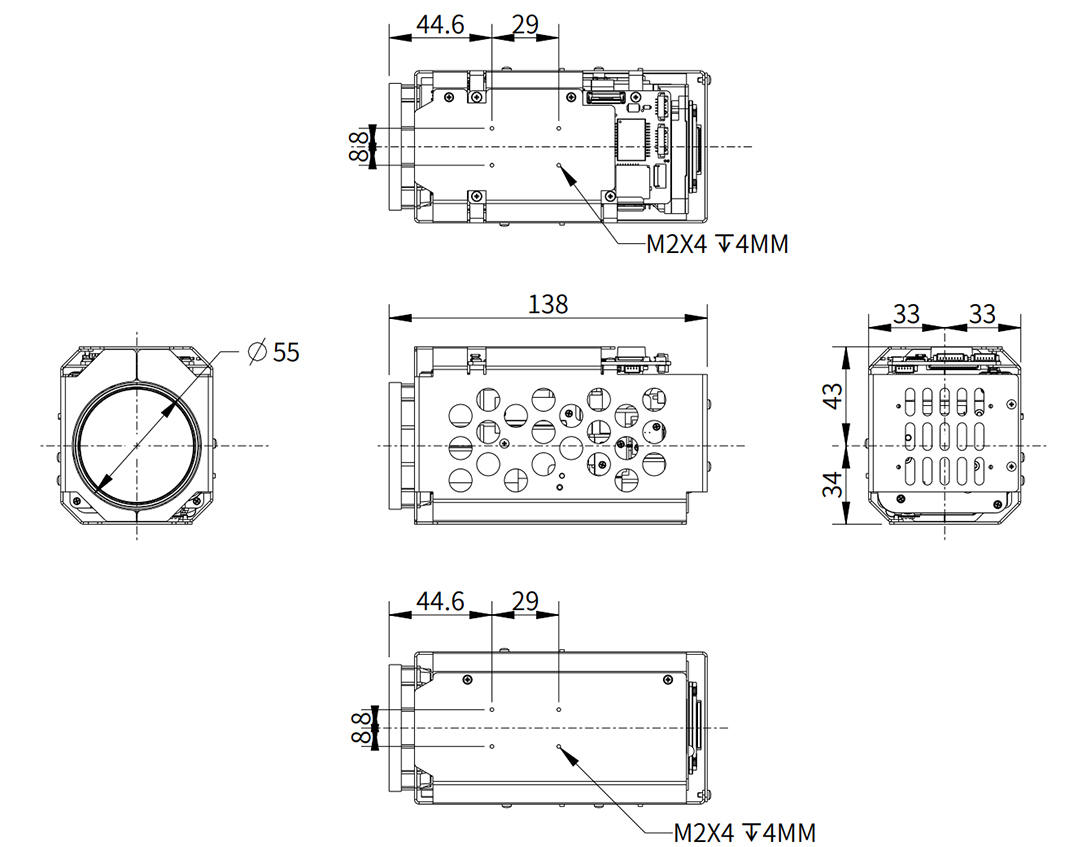

Ukuran (l * w * h) |
Kira-kira. 138mm * 66mm * 77mm |
|
|
Bobot |
618g |
|
