12μm 640 × 512 USB (CVBS / Tipe - Pilihan C / Mipi Opsional) Ukuran Ukuran Kompak Pangukuran Modul termal
|
Nomer Model |
Sg - DTM06U (C, M) 2 - x |
Sg - DTM06U (C, M) 2 - TX |
Sg - DTM03U (C, M) 2 - x |
Sg - DTM03U (C, M) 2 - TX |
Sg - DTM02U (c) 2 - x |
Sg - DTM02U (C) 2 - TX |
|
Modul termal |
||||||
|
Sensor gambar |
MicroBolometer VOX sing ora dilacak |
|||||
|
Interval piksel |
12μm |
|||||
|
WALKAN WALKAN |
8μm kanggo 14μm |
|||||
|
Max. Resolusi |
640 × 512 |
384 × 228 |
256 × 192 |
|||
|
Rating pigura (FPS) |
50 |
25 |
50 |
25 |
50 |
25 |
|
Lensa (dawa fokus) |
9.1 / 13/19 / 25mm |
9.1 / 13mm |
4/7 / 10mm |
|||
|
F nomer |
F1.0 / F1.0 / F1.1 / F1.2 |
F1.0 |
F1.0 |
|||
|
Bidang tampilan (H × V) |
45.9 ° × 36.9 ° / 32.9 ° × 26.6 ° / 22.6 ° × 18.2 ° / 17.3 ° × 13.8 ° |
28.7 ° × 21.7 ° / 20.1 ° × 15.1 ° |
46.8 ° × 34.1 в / 24.6 ° × 18.5 ° / 16,9 ° × 12.8 ° |
|||
|
Pangukuran Temp |
N / a |
Dhukungan |
N / a |
Dhukungan |
N / a |
Dhukungan |
|
Ukuran suhu |
||||||
|
Range Suhu |
Mode LT: - 20 ° C ~ + 150 ° C; Mode HT: 0 ° C ~ + 550 ° C |
|||||
|
Kesalahan pangukuran |
Max (± 2 ° C, ± 2%); Temp: Kèndêl ingsun - 20 ° C ~ + 50 ° C |
|||||
|
Tampilan gambar |
||||||
|
Penyesuaian gambar |
Padhang, kontras, ketajaman |
|||||
|
Peningkatan Detail |
Dhukungan |
|||||
|
Gain |
Otomatis / Manas |
|||||
|
Pengurangan swara |
2D / 3D |
|||||
|
Flip |
Dhukungan |
|||||
|
Pangilon |
Dhukungan |
|||||
|
Pseudo - warnane |
18 palet warna sing laras |
|||||
|
Crosshair |
Tampilan / ilang / ndhelikake |
|||||
|
Pangolahan gambar |
NUC Correction, Filter Noise Digital, DDE |
|||||
|
Video |
||||||
|
Output Video |
UVC / BT.656 / MIPI / LVDS / CVBS |
Uvc / cvbs |
||||
|
Antarmuka Ekspansi |
USB / MIPI / CVBS / Tipe - C |
USB / CVBS / Tipe - C |
||||
|
Komunikasi Serial |
Port Serial Uart |
|||||
|
Umum |
||||||
|
Kekuwatan |
DC 4.5 ~ 5.5V; CVBS: DC 4.5-20V |
|||||
|
Konsumsi daya |
≤0.7w@25 )c |
≤0.7w@25 )c |
≤0.55w@25 UNDANG |
|||
|
Suhu |
Kèndêl ingsun - 40 ° C ~ 70 ° C |
|||||
|
Suhu panyimpenan |
Kèndêl ingsun - 40 ° C ~ 80 ° C |
|||||
|
Kelembapan sing digunakake |
≤95% RH (Non - Kondensing) |
|||||
|
Kaget |
6.06G Random, 3 - Axis, getar gelombang sine |
|||||
|

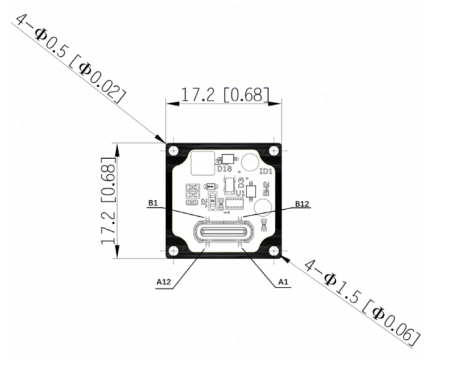

Dimensi |
17.3mm * 17,3mm * 10.8mm (tanpa lensa ring buntut lensa) |
|||||
|
Bobot |
5g (tanpa piring lensa ring buntut lensa) |
|||||
